63 99 132 Replacing bulb for front left (or right) side lights (after 03/2007)

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

NOTE: Headlight (2) removed for purposes of clarity.

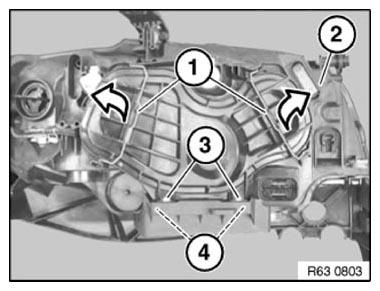

Unlock spring wire clips (1) in direction of arrow.

Remove cover from headlight (2).

Fig 1: Removing Cover From Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure cover is correctly seated on headlight (2).

Guides (3) must be exactly seated in associated locators (4).

Grip bulb holder (1) on both sides and pull towards rear out of headlight (2).

Installation note:

Make sure bulb holder (1) is exactly seated in headlight (2).

Fig 2: Removing Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw bulb for side lights (1) in direction of arrow from bulb holder (2).

Installation note:

Fig 3: Removing Bulb For Side Lights From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
