51 13... Replacing front radiator grille, middle left or right

NOTE: Representation created using the E85 as an example. There may be differences in detail in the case of other vehicle models.

Lever out upper catches (3) and separate inner section (2) from chrome ring (1).

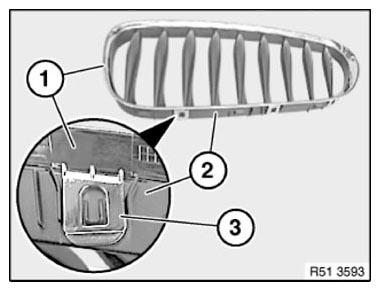

Fig 1: Identifying Upper Catches And Inner Section From Chrome Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check inner section (1) for damage.

Retaining lugs (3) and (4) along line (2) must not be damaged.

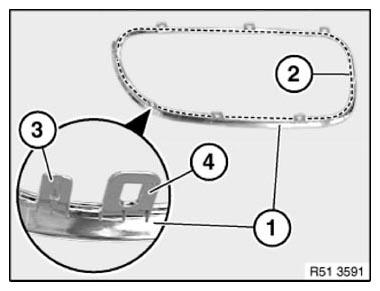

Fig 2: Identifying Lugs And Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check chrome ring (1) for damage.

Catches (4) and guides (3) along line (2) must not be damaged.

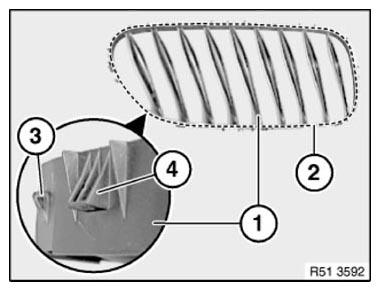

Fig 3: Identifying Chrome Ring, Guides And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Assemble chrome ring (1) and inner section (2).

Make sure catch (3) is correctly assembled.

Fig 4: Identifying Upper Catches And Inner Section From Chrome Ring
