51 44... Removing and installing/replacing front roofliner trim

IMPORTANT: Risk of damage!

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Fold back mucket (1) at top to one side and release screw (2) underneath on both sides.

Installation:

Make sure mucket (1) is correctly seated on trim (3) along dashed line.

Fig 1: Folding Back Mucket

Courtesy of BMW OF NORTH AMERICA, INC.

Release mucket (1) from trim (2).

Pull back trim (2) in direction of arrow and remove.

Installation:

Make sure mucket (1) is correctly seated.

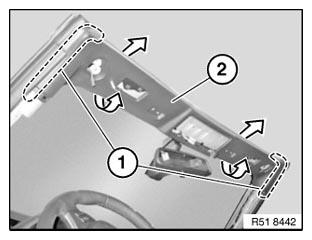

Fig 2: Releasing Mucket From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Holder (1) and guide (2) on trim (3) must not be damaged.

Fig 3: Identifying Holder And Guide On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
