51 61... Removing and installing/replacing protective skid

IMPORTANT:

Observe SAFETY INSTRUCTIONS for raising the vehicle

Driving without the protective skid is not permitted!

Necessary preliminary tasks:

Release screws (1) and remove protective skid (2).

Installation:

Replace all screws.

Tightening torque 51 71 12AZ .

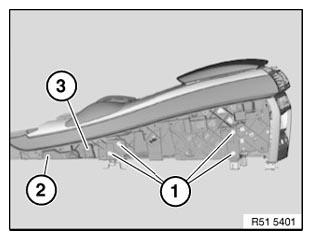

Fig 1: Identifying Protective Skid And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
