51 12... Replacing rear bumper trim (M Technic aerodynamic kit)

Special tools required:

00 9 317

IMPORTANT: The INSTRUCTIONS on component cementing with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

Remove trim:

Carefully detach trim (1) from rear bumper with special tool 00 9 317 and hot air blower.

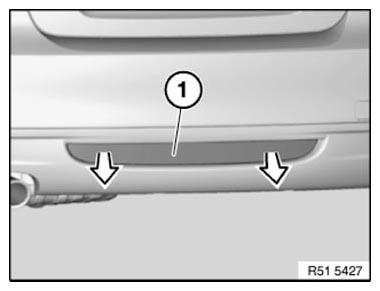

Fig 1: Detaching Trim From Rear Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pull protective film (1) off trim (2).

Fit trim (2) over guides (3) into associated mountings on bumper and stick on.

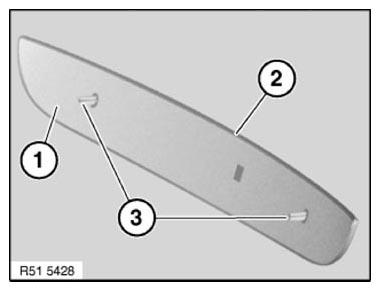

Fig 2: Identifying Trim And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
