51 12... Removing and installing/replacing lower cover on rear bumper

NOTE: Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

Release screws (1 and 2).

Feed out cover (3) towards rear and remove.

Installation:

Make sure cover (3) is correctly seated.

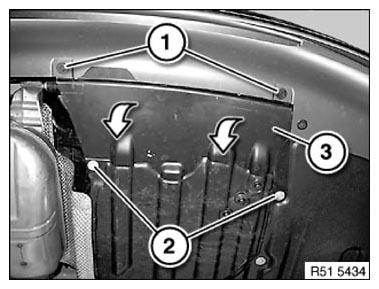

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
