51 16... Removing and installing/replacing protective cap on mirror base

Necessary preliminary work:

• Remove EXTERIOR MIRROR ON FRONT DOOR

Pull the protective cap (1) off the mirror base (2) toward the inside.

Installation note:

Fit protective cap (1) flush with mirror base edge.

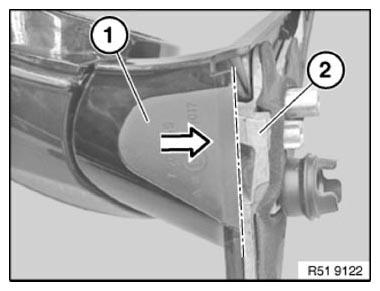

Fig 1: Pulling Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.
