51 11... Installing/replacing number/license plate (without base)

Initial fitting:

Place drilling hole template (1) on bumper (2).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to car registration number plate specifications.

Remove template (1) and secure car registration number plate with screws provided.

Tightening torque 51 11 3AZ .

Fit protective caps.

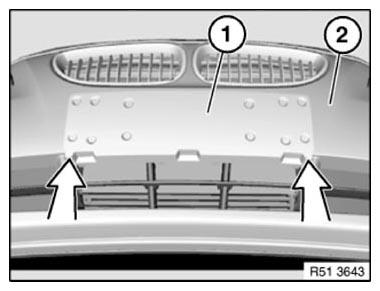

Fig 1: Removing Template

Courtesy of BMW OF NORTH AMERICA, INC.

Place drilling hole template (1) on radiator grille (2) and bumper (3).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to car registration number plate specifications.

Remove template (1) and secure car registration number plate with screws provided.

Tightening torque 51 11 3AZ .

Fit protective caps.

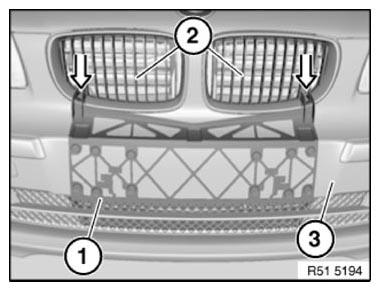

Fig 2: Removing Template

Courtesy of BMW OF NORTH AMERICA, INC.

Thread repair:

Drill out defective hole in bumper (2) to 9.5 mm diameter.

Insert blind rivet nut (1)*.

Secure car registration number plate (3) with car registration number plate (4)*.

Tightening torque 51 11 4AZ .

NOTE: * Sourcing reference: BMW Parts Department

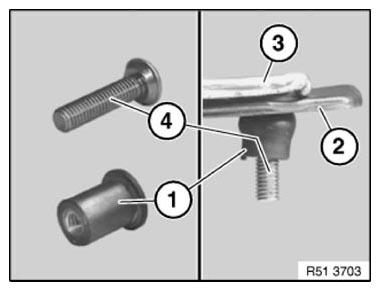

Fig 3: Identifying Blind Rivet Nut And Registration Number Plate

Courtesy of BMW OF NORTH AMERICA, INC.
