51 11 773 Replacing front lower left or right deformation element
Necessary preliminary work:
- Remove support for bumper panel at front bottom
- Remove FRONT UNDERBODY PROTECTION
- Remove brake air duct.

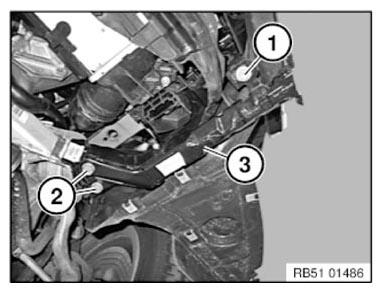

Release screw (1).
Tightening torque 51 11 6AZ .
Unfasten screws (2).
Tightening torque 51 11 8AZ .
Remove deformation element (3).
