51 14 110 Removing and installing/replacing rear model designation
IMPORTANT:
The INSTRUCTIONS FOR NUMBER/LETTER COMBINATION CEMENTING serve as the basis for these repair instructions and must be followed without fail.

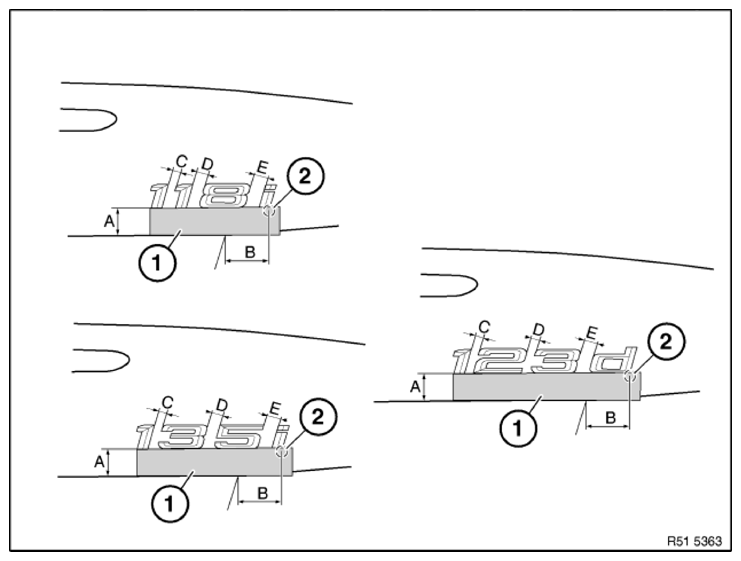

Fitting dimensions (E82/E88):
Stick on adhesive tape (1) horizontally according to dimension "A".
Mark reference point (2) according to dimension "B".
Position model designation at reference point (2) and stick on.
Dimensions:
A= 23.5 mm
B= 26.5 mm
NOTE:
Measurements C, D and E are for information purposes only, as determined by carrier film.
118 i: C = 5.5 mm, D = 8 mm, E = 16 mm
120 i...128i: C = 8 mm, D = 6.5 mm, E = 16 mm
135 i: C = 6.8 mm, D = 6.5 mm, E = 16 mm
118 d: C = 5.5 mm, D = 8 mm, E = 13.5 mm
120 d...123 d: C = 8 mm, D = 6.5 mm, E = 13.5 mm
118 i: C = 5.5 mm, D = 8 mm, E = 16 mm
120 i...128i: C = 8 mm, D = 6.5 mm, E = 16 mm
135 i: C = 6.8 mm, D = 6.5 mm, E = 16 mm
118 d: C = 5.5 mm, D = 8 mm, E = 13.5 mm
120 d...123 d: C = 8 mm, D = 6.5 mm, E = 13.5 mm
