84 31 020 Removing and installing/replacing hands-free system speaker

Necessary preliminary tasks:

Disconnect plug connection (1).

If necessary, release cable tie from catches (2).

Unlock catches (2) and remove speaker (3) from mounting.

Installation:

Catches (2) must not be damaged.

Guide lugs of mounting must be seated in grooves of speaker (3).

Speaker (3) must snap audibly into place in mounting.

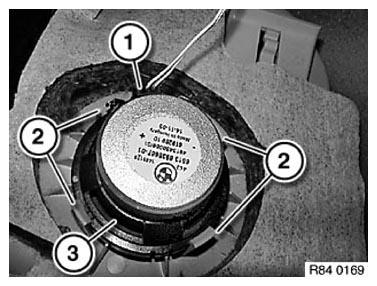

Fig 1: Identifying Speaker Plug Connection And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
