65 75 071 Removing and installing (replacing) module for passenger compartment sensor (Coupe)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Open retaining shook (1) in direction of arrow and remove module for passenger compartment sensor (2) from trim (3).

Installation:

Retaining hooks (1) must not be damaged.

Arrow (4) must point in opposite direction to direction of travel.

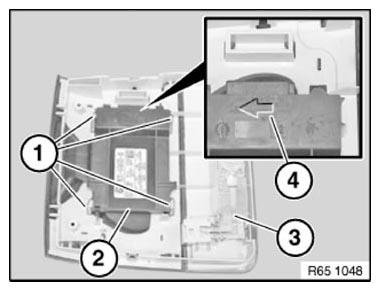

Fig 1: Identifying Passenger Compartment Sensor Module And Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
