41 00... Body Gap Dimensions

WARNING: This page is about a different variant/trim than selected.

NOTE: The dimensions specified in this information are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap.
Symmetry of the gaps between left and right sides of the vehicle has top priority.
The door gaps must not deviate between the front and rear gap by more than 1.0 mm.
No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

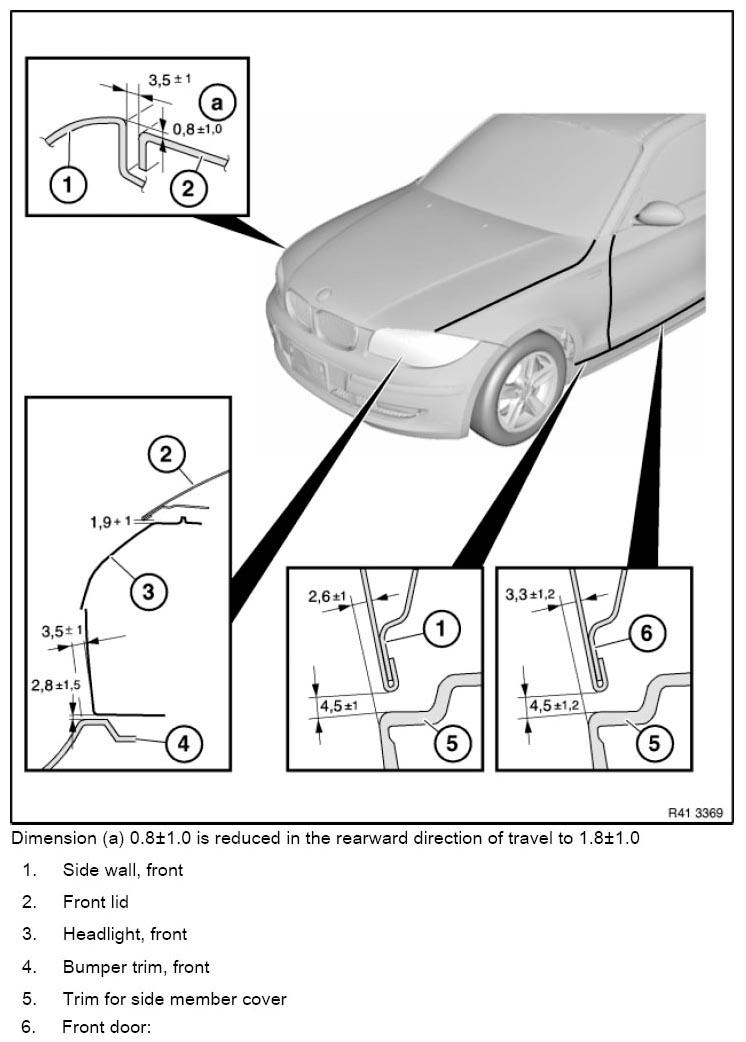

Fig 1: Front Fender, Hood, Front Bumper, Headlamps, Front Door And Sidemember Cover Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension (a) 0.8±1.0 is reduced in the rearward direction of travel to 1.8±1.0

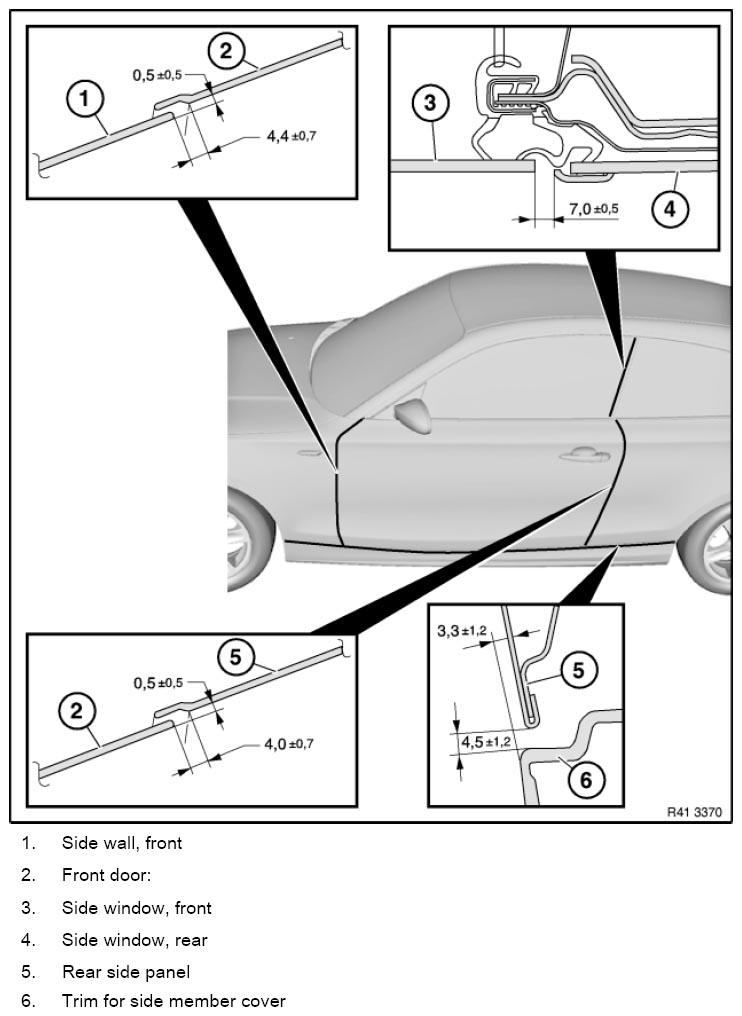

Fig 2: Front Fender, Front Door, Sidemember Cover, Quarter Panel, Front Door Glass And Quarter Glass Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

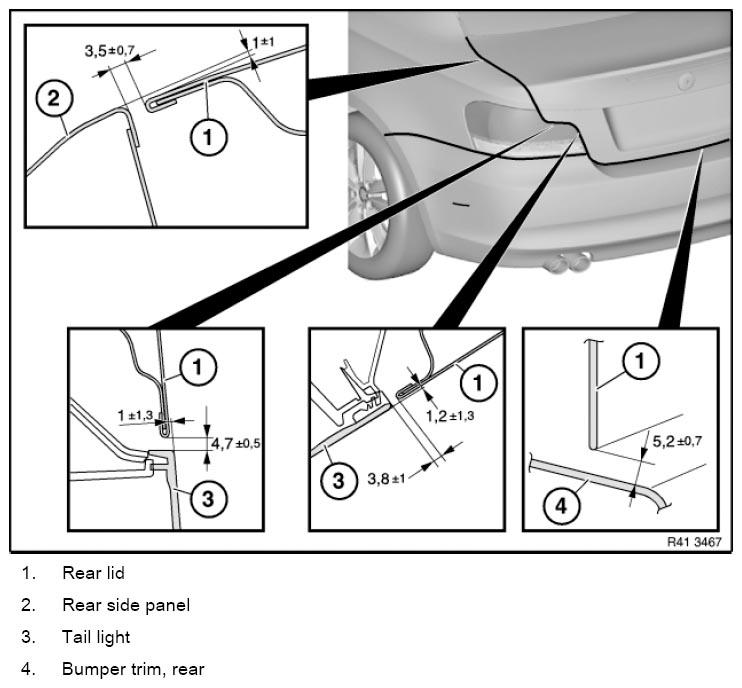

Fig 3: Trunk Lid, Quarter Panel, Tail Lamps And Rear Bumper Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.
