13..... Removing intake port (N54T)

Release screws.

Tightening torque 13 71 5AZ .

Unlock intake port (1) sideways and detach from the air filter housing.

Feed out intake port in direction of arrow upwards and remove.

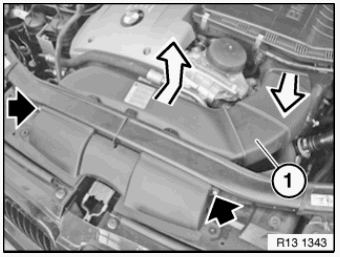

Fig 1: Removing Intake Port

Courtesy of BMW OF NORTH AMERICA, INC.
