13..... Removing intake duct (N55)

Release screws (1).

Tightening torque 13 71 1AZ .

Unlock intake port on side clamps (2) and pull off the air filter housing.

Remove intake port (3).

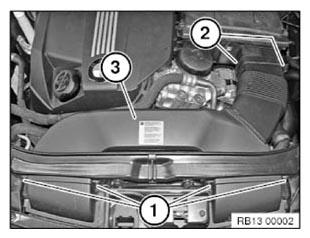

Fig 1: Identifying Intake Port And Down Screws
