16 12 010 Removing and installing or replacing carbon canister (N54T)

Unlock quick-release fasteners (1) and disconnect vent lines.

Release screws (2) and remove carbon canister (3).

Installation note:

Tightening torque 16 13 1AZ .

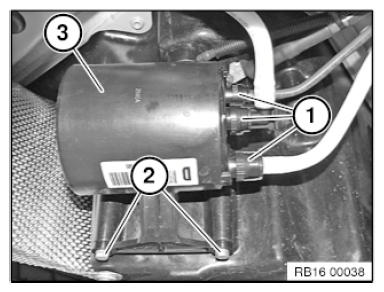

Fig 1: Identifying Carbon Canister And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
