51 12 801 Replacing bracket for rear bumper at left or right
Necessary preliminary tasks:
- Remove rear bumper trim . See 51 12 156 REMOVING AND INSTALLING/REPLACING REAR BUMPER TRIM (M TECHNIC AERODYNAMIC KIT) or 51 12 156 REMOVING AND INSTALLING/REPLACING REAR BUMPER TRIM

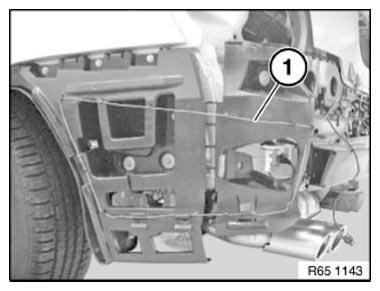

If necessary, feed aerial cable (1) out of holder.
Installation:
Ensure correct lead routing.

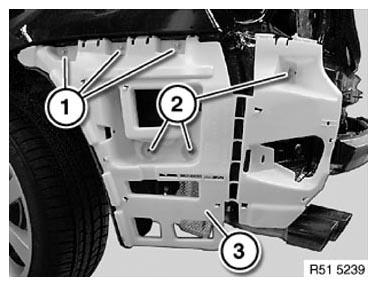

Release screws (1).
Release nuts (2) and remove holder (3).
Installation:

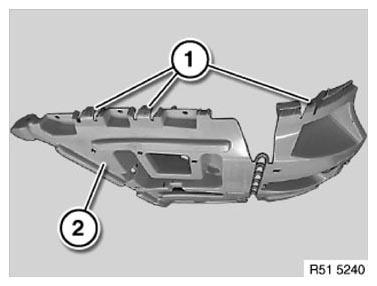

Catches (1) on holder (2) must not be damaged.
