51 16 195 Removing and installing center armrest

Special tools required:

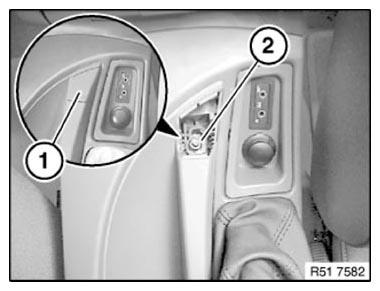

Lever out cover (1) and release nut (2) underneath.

Fig 1: Identifying Cover And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

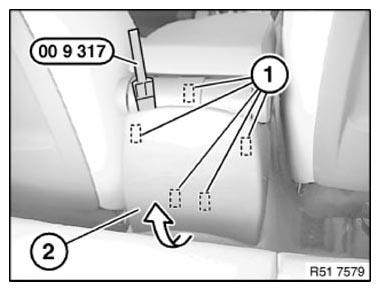

Lever out catches (1) on trim (2) with special tool 00 9 317 and remove.

Fig 2: Removing Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

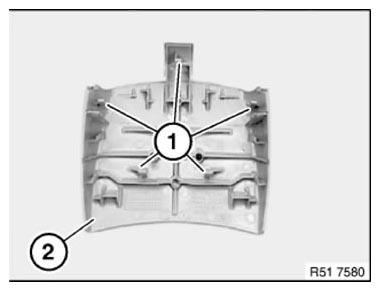

Catches (1) on trim (2) must not be damaged.

Fig 3: Identifying Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

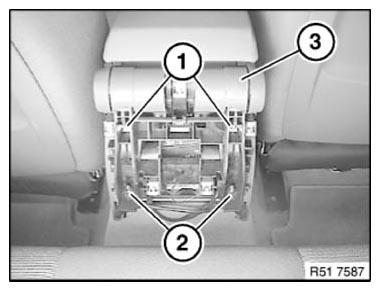

Release screws (1) and nuts (2) on center armrest (3).

Fig 4: Identifying Nuts On Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

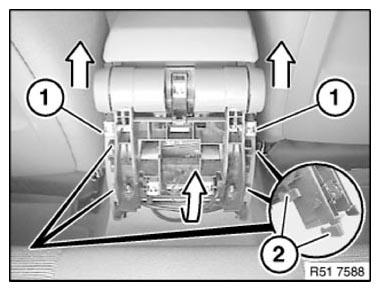

Raise storage compartment (1) slightly and extend center armrest (2) in downwards direction.

Fig 5: Removing Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
