51 16 080 Removing and installing or replacing sun visor and left or right counter support

NOTE: The operation is shown on the left side; proceed in the same way for the right side.

Fold down sun visor (5).

Lever out trim (2) on counter support (1) and release screw underneath.

Release screws (3) on holder (4).

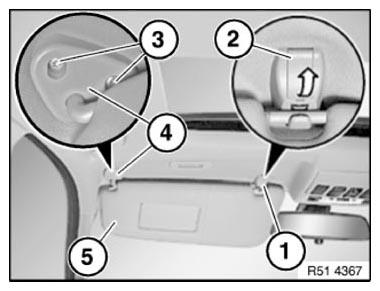

Fig 1: Pulling Out Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out sun visor (1).

If necessary, pull out cable (2) slightly and disconnect plug connection (3).

Installation:

Perform function check on lighting.

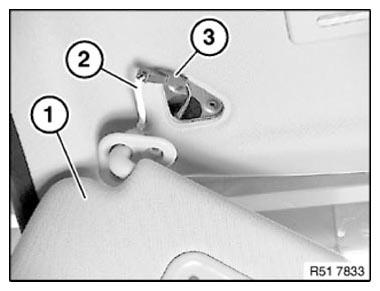

Fig 2: Identifying Cable, Plug Connection And Sun Visor

Courtesy of BMW OF NORTH AMERICA, INC.
