51 41 000 Removing and installing (replacing) front left or right door trim panel

Special tools required:

IMPORTANT: Risk of damage!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Driver's side:

Passenger side:

Lever out cover (1) and release screw underneath.

Release screws (2).

Tightening torque 51 41 1AZ .

Fig 1: Identifying Front Left/Right Door Trim Panel Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Do not pull door trim panel by map pocket.

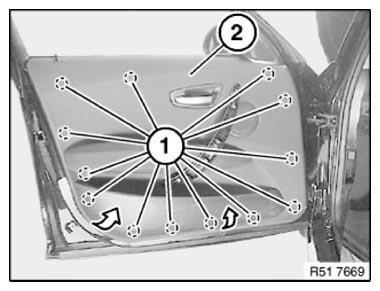

Unclip clips (1) for door trim panel (2) with special tool 00 9 317 .

NOTE: Start by unclipping door trim panel (2) at bottom.

Fig 2: Removing Clips For Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully unclip door trim panel (1) at top from retainers (2).

Fig 3: Identifying Door Trim Panel And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable (1) from door lock (2).

Disconnect all plug connections and remove door trim panel.

Fig 4: Identifying Bowden Cable And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1, 2 and 3).

Make sure clips (1, 2 and 3) are in correct installation position.

Grey clip
White clip
Beige clip

Fig 5: Identifying Faulty Clips
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

Replacement:
