51 11 180 Removing and installing/replacing center ornamental grille for bumper trim (M-Coupe)

Necessary preliminary tasks:

Release latch mechanisms (1) and remove center ornamental grille (2).

Installation note:

Latch mechanisms (1) must not be damaged.

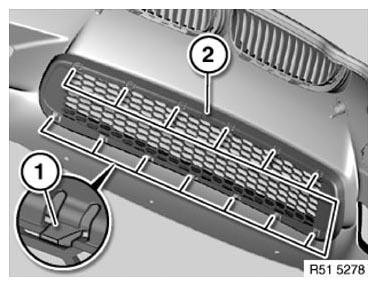

Fig 1: Identifying Latch Mechanisms And Center Ornamental Grille

Courtesy of BMW OF NORTH AMERICA, INC.
