51 47 161 Removing and installing/replacing right luggage compartment wheel arch trim

Necessary preliminary tasks:

Version with through-loading system:

Lever out socket (1) in direction of arrow and disconnect plug connection.

Fig 1: Removing Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) and catches (2) on socket (3) must not be damaged.

Fig 2: Identifying Guide, Catches, Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1).

Release screw (2) and remove trim (3).

Pull out luggage compartment wheel arch trim (4) in inwards direction.

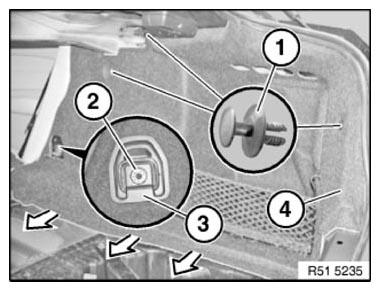

Fig 3: Pulling Out Luggage Compartment Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, release retainer (1) on back of luggage compartment wheel arch trim (2) and remove securing net (3).

Fig 4: Identifying Luggage Compartment Wheel Arch Trim, Retainer, Securing Net
