41 11 734 Replacing Complete Rear Tension Strut Mounting (Convertible)
Read contents of BODY, GENERAL .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

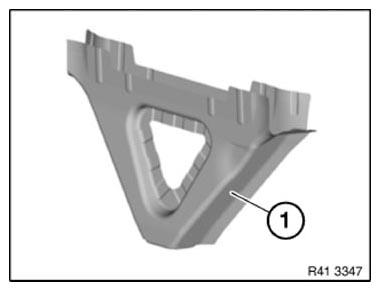

Following new body parts are required:
- (1) Bracket, tension strut, rear

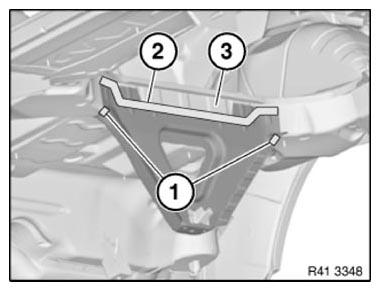

Open weld joints in areas (1).
Open weld joints in areas (2) on both sides of rear axle carrier (3).
Installation information:
To adjust new part to fit, screw down tension strut.
If vehicle is on straightening bench, adjust new part to fit with straightening attachment or universal mount.
