41 12 557 Replacing Middle Luggage Compartment Floor Section (Tail Panel Removed)
Read contents of BODY, GENERAL .
Procedure OBSERVE repair stage 2!
Following new body parts are required (refer to CONSUMABLES ):

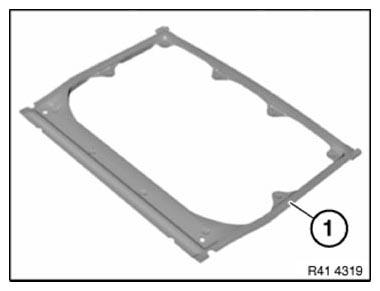

- (1) Frame, luggage compartment floor
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5a | 1 |
| Punch rivets N5 | 8 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
Removal of luggage compartment floor

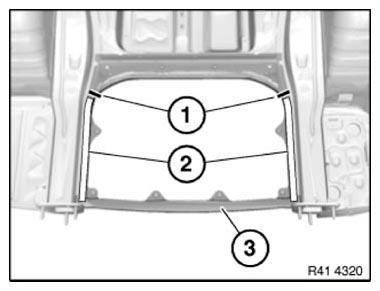

Mark severance cuts (1) and cut.
IMPORTANT:
Cut only outer panels.
Open welded connections in areas (2) and remove luggage compartment floor (3).
New part preparation
Mark new part in accordance with severance cuts on vehicle and cut.
IMPORTANT:
Do not grind new parts and body in area of bonding surfaces.
Installation of luggage compartment floor:

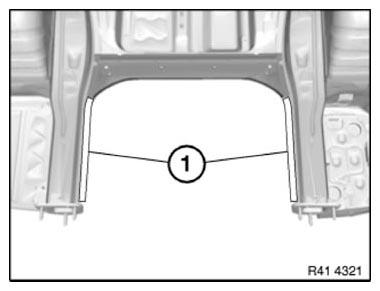

Clean all bonding surfaces (1) on vehicle and on new part with cleaning agent R1.
Apply adhesive K5b to bonding surfaces (1).

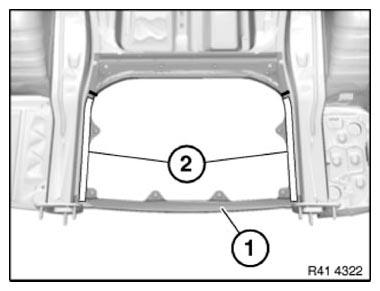

Adjust luggage compartment floor (1) to fit in conjunction with tail panel and secure.
Rivet luggage compartment floor with 6 punch rivets N5 in areas (2).
