34 11 220 Removing and installing/replacing both front brake discs (M3/1-Series M Coupe)

Special tools required:

34 1 280

Necessary preliminary tasks:

Remove FRONT WHEELS .
Remove and clean BRAKE PADS .

NOTE: After completing work, read and comply with notes on BREAKING IN NEW BRAKE DISCS/BRAKE PADS .

Check minimum brake disc thickness:

Position special tool 34 1 280 at three measuring points in area (1) and measure.
Compare measuring result and lowest value with setpoint value.

Installation note:

New brake pads may only be fitted if the brake disc thickness is greater than the minimum brake disc thickness (MIN TH).

If the brake discs are replaced, you must also fit new brake pads.

Brake discs may only be replaced in pairs (on each axle).

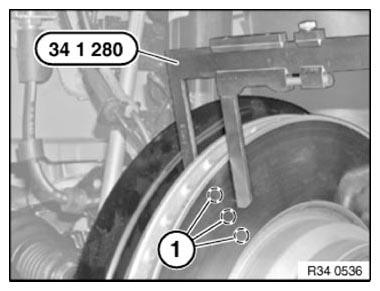

Fig 1: Identifying Special Tool 34 1 280

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove brake anchor plate (2).

Installation note:

Tightening torque 34 11 2AZ .

Fig 2: Identifying Brake Anchor Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To release brake disc: Do not under any circumstances strike friction ring with a hammer or similar!
If necessary, carefully tap on base of brake disc chamber with a rubber mallet.
Clean contact surface of brake disc at wheel hub thoroughly and remove traces of corrosion.
Unevenness on contact surface may result in distortion of brake disc!

IMPORTANT: Brake discs must not be mixed up (directional ventilation).

Release screws (1) and remove brake disc.

Installation note:

Brake disc must be correctly seated on guide pins (2).

Replace screw.

Tightening torque 34 11 1AZ .

Fig 3: Identifying Guide Pins And Screws
