51 11 X03 Removing and installing/replacing cover cap on spray nozzle for headlight washer system on left or right
Special tools required:
IMPORTANT:
Risk of damage!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

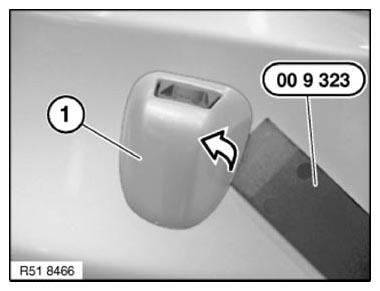

Release cover cap (1) using special tool 00 9 323 from catches and remove in upward direction.
Installation:

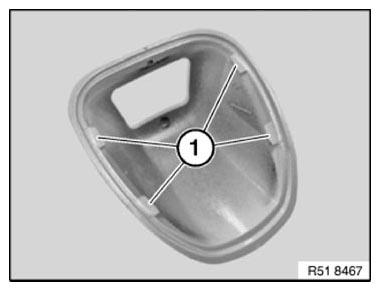

Catches (1) must not be damaged.
