51 11 150 Removing and installing/replacing left or right spoiler on bumper trim (M Technic aerodynamic kit)

NOTE: Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

Release screws (1).

Pull out spoiler (2) towards rear and remove.

Installation:

Make sure spoiler (2) is correctly seated in bumper trim.

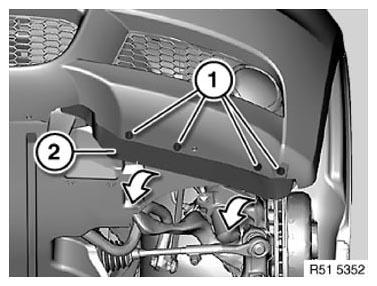

Fig 1: Pulling Out Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify sheet nut (1), replace if necessary.

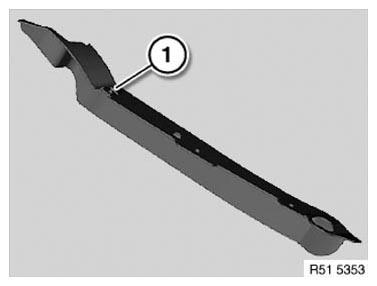

Fig 2: Identifying Sheet Nut
Courtesy of BMW OF NORTH AMERICA, INC.
