51 14 010 Removing and installing/replacing rear BMW badge

Special tools required:

00 9 322

IMPORTANT: The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

Carefully heat BMW badge (1) with hot air blower and lever out with special tool 00 9 322 .

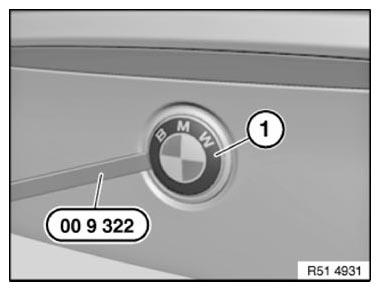

Fig 1: Identifying Special Tool 00 9 322

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pull liner* off adhesive tape (1).

Position plate over guides (2 and 3) and press down firmly.

* Liner is the protective film on a new badge.

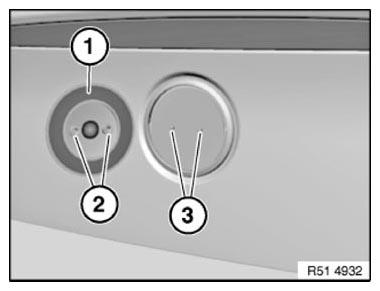

Fig 2: Identifying Adhesive Tape And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
