66 20 537 Removing and installing/replacing rear middle right ultrasonic sensor

Release screws (1) and remove bottom center cover (2).

Fig 1: Identifying Bottom Center Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

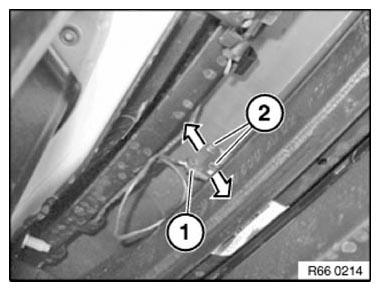

Disconnect plug connection (1).

Unlock retaining tabs (2) in direction of arrow and remove ultrasonic sensor.

Installation note:

Before installation of ultrasonic sensor on wiring harness, clean plug connection!

Fig 2: Removing Ultrasonic Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).

Fig 3: Identifying Ultrasonic Sensor And Rubber Ring

Courtesy of BMW OF NORTH AMERICA, INC.
