66 20 535 Removing and installing/replacing rear right ultrasonic sensor

Release screws (1) and remove center trim panel (2).

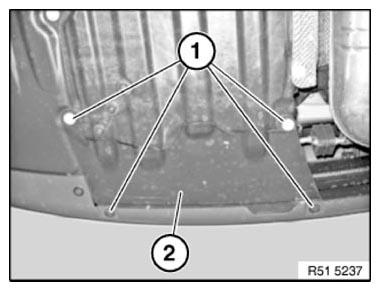

Fig 1: Identifying Center Trim Panel And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

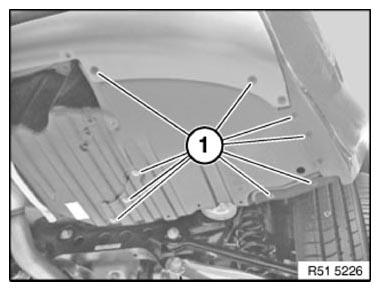

Release screws (1) and remove rear right underbody panelling.

Fig 2: Identifying Underbody Panelling Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Unlock locking tabs (2) in direction of arrow and remove ultrasonic sensor.

Installation note:

Before installation of ultrasonic sensor on wiring harness, clean plug connection!

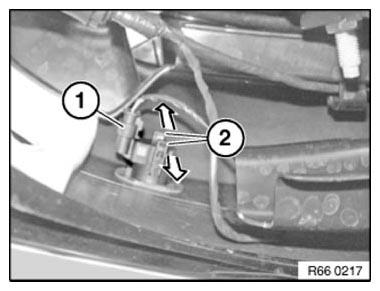

Fig 3: Removing Ultrasonic Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).

Fig 4: Identifying Ultrasonic Sensor And Rubber Ring

Courtesy of BMW OF NORTH AMERICA, INC.
