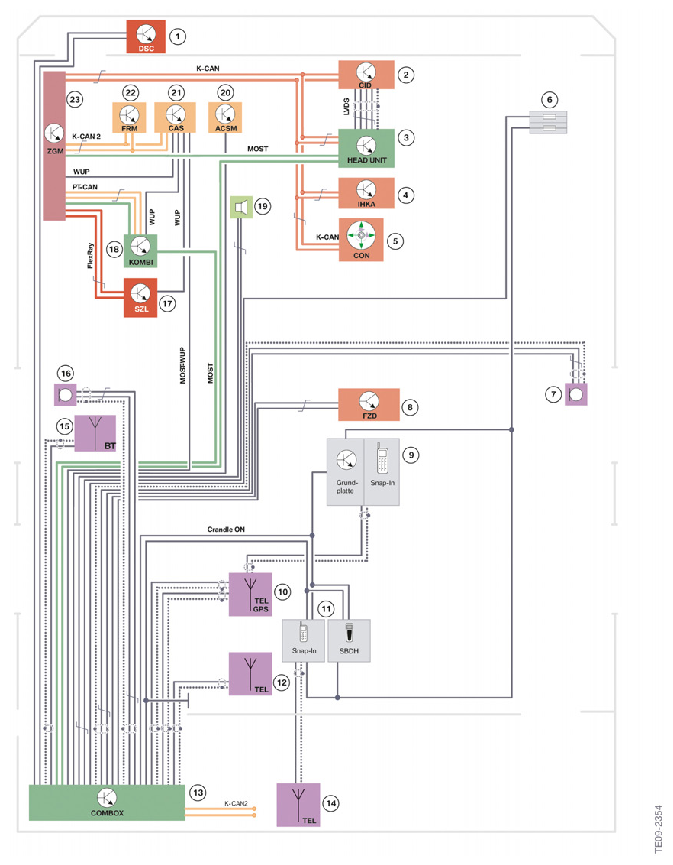

Combox with telematics
INDEX EXPLANATION REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Dynamic Stability Control (DSC) |
| 2 | Central Information Display (CID) |
| 3 | Head unit |
| 4 | Integrated automatic heating and air conditioning (IHKA) |
| 5 | Controller (CON) |
| 6 | Front right power distribution box |
| 7 | Microphone 2 |
| 8 | Roof functions center (FZD) |
| 9 | Base plate in the center console and snap-in adapter |
| 10 | Roof telephone antenna (telephone 1 and 2, GPS) |
| 11 | Snap-in adapter and rear handset (Not US) |
| 12 | Telephone antenna backup |
| 13 | Combox |
| 14 | Telephone antenna, bumper (Not US) |
| 15 | Telephone antenna, Bluetooth |
| 16 | Microphone 1 |
| 17 | Steering column switch cluster SZL) |
| 18 | Instrument cluster (KOMBI) |
| 19 | SOS speaker |
| 20 | Crash safety module (ACSM) |
| 21 | Car Access System (CAS) |
| 22 | Footwell module (FRM) |
| 23 | Central Gateway Module (ZGM) |
