Combox audio interface (options 6FL and 6NF)

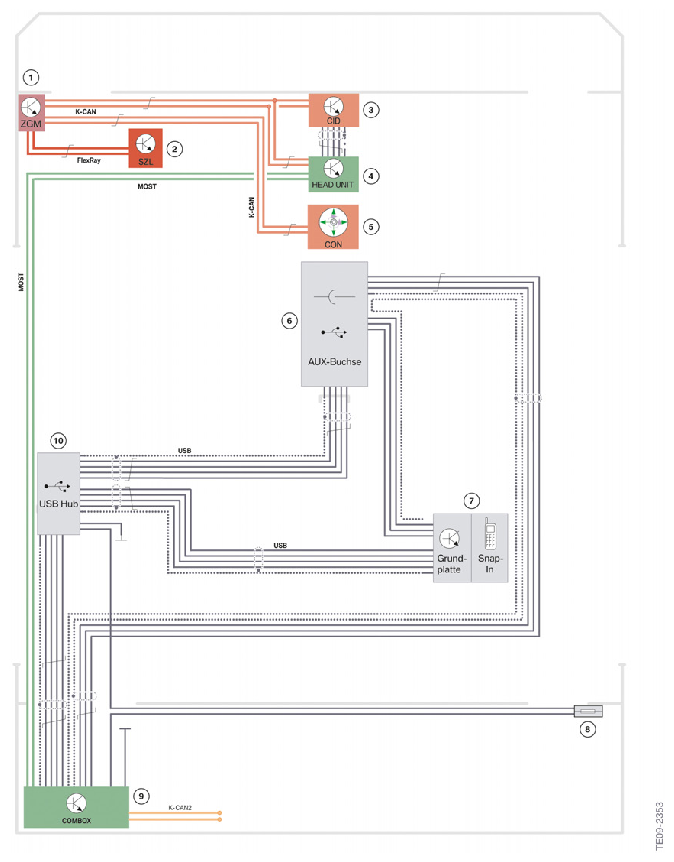

INDEX EXPLANATION REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Central Gateway Module (ZGM) |
| 2 | Steering column switch cluster (SZL) |
| 3 | Central Information Display (CID) |
| 4 | Head unit |
| 5 | Controller (CON) |
| 6 | AUX In connector and USB audio interface |
| 7 | Base plate in the center console and snap-in adapter |
| 8 | Rear right power distribution box |
| 9 | Combox |
| 10 | USB hub (F0x only) |
For vehicles without USB hub (all except F0x), both the USB audio interface and the base plate are connected directly to the Combox. If a USB hub is installed, only one USB connection (USB 1) of the Combox is used.
