Combox audio interface (options 6FL and 6NF)

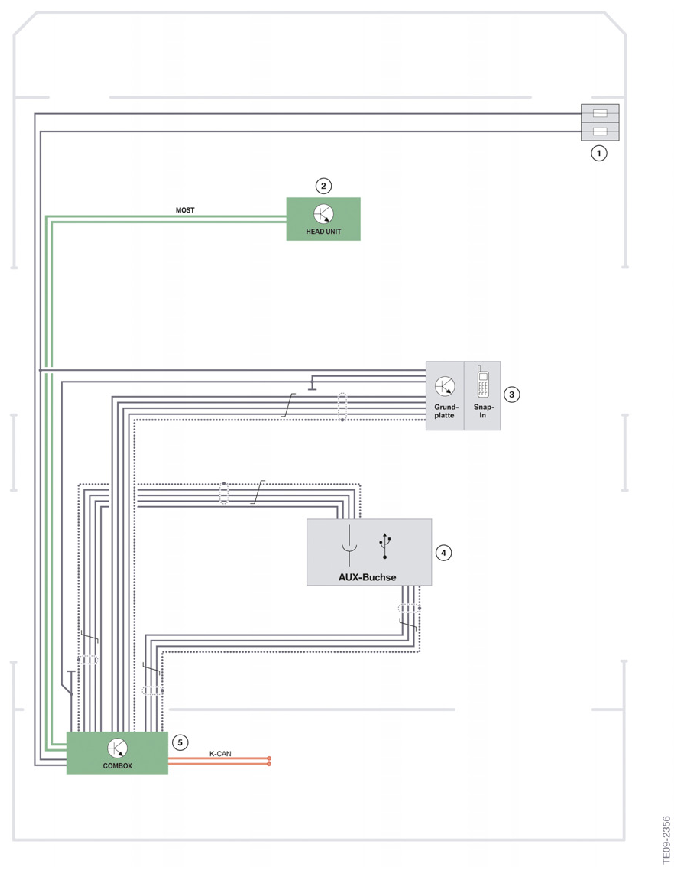

Fig 1: Combox Audio Interface System Wiring Diagram (Options 6Fl And 6NF) - L2 (E8x/E9x) And L4 (E7X) Vehicles

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX EXPLANATION REFERENCE CHART

Index	Explanation
1	Front right power distribution box
2	Head unit
3	Base plate in the center console and snap-in adapter
4	AUX In connector and USB audio interface
5	Combox
