Checking Fluid Level

WARNING: This page is about a different car, the 2005 BMW 645Ci, 2005 BMW 545i, 2004 BMW 645Ci, and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers in text refer to numbers in figure.

Check lubricant at fill hole (2). See Fig 1 . Lubricant should be at bottom of filler plug hole.

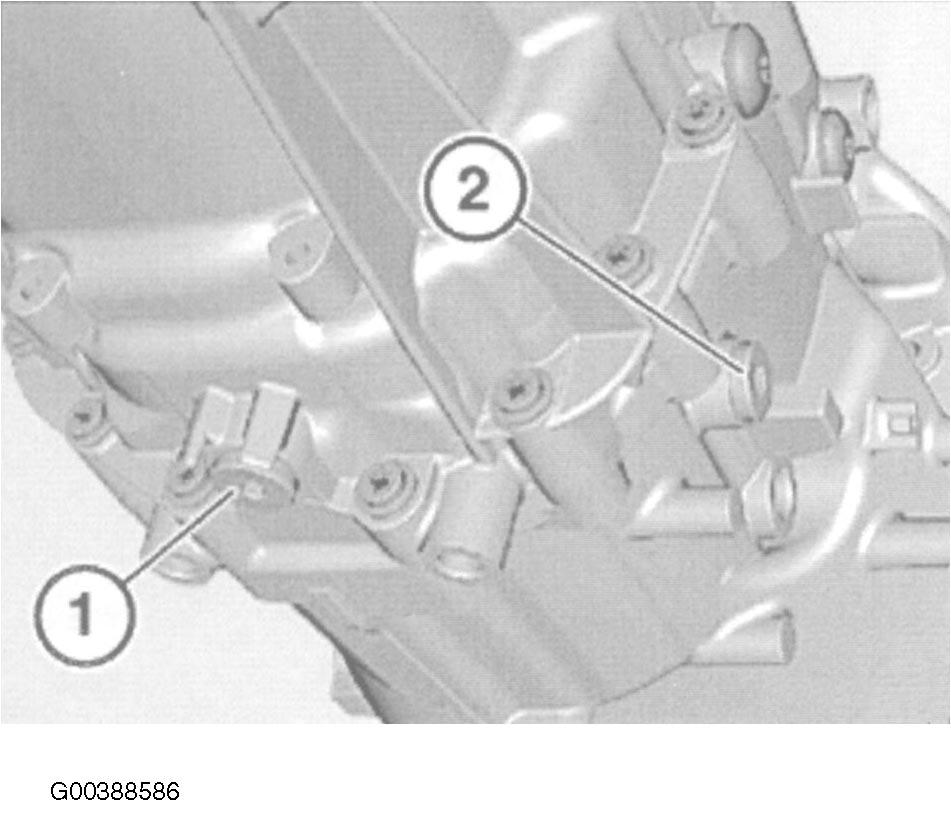

Fig 1: Locating Transmission Oil Drain & Filler Plugs

Courtesy of BMW OF NORTH AMERICA, INC.
