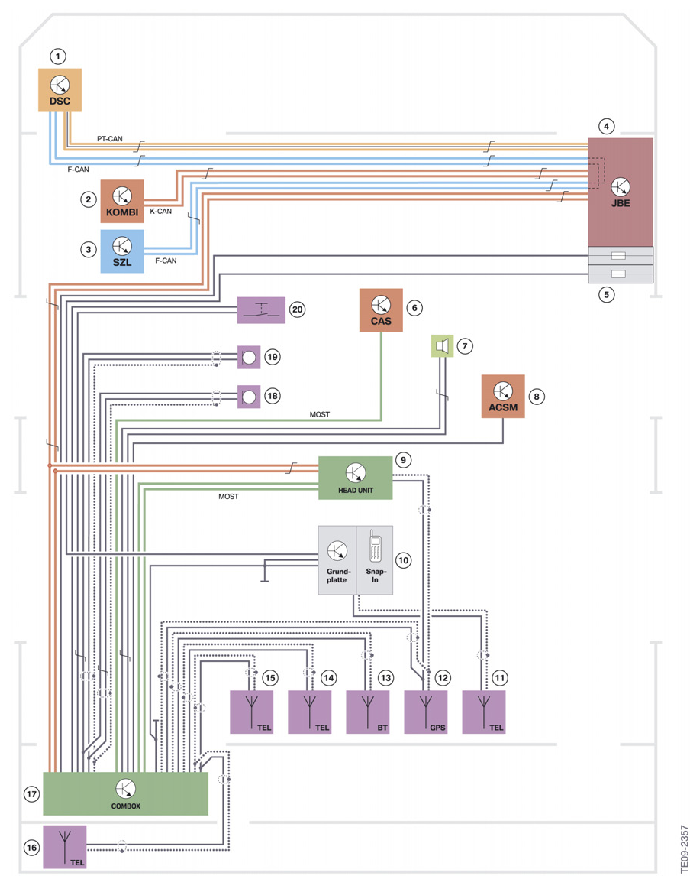

Combox with telematics
INDEX EXPLANATION REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Dynamic Stability Control (DSC) |
| 2 | Instrument cluster (KOMBI) |
| 3 | Steering column switch cluster (SZL) |
| 4 | Junction box electronics (JBE) |
| 5 | Front right power distribution box |
| 6 | Car Access System (CAS) |
| 7 | SOS speaker |
| 8 | Crash safety module (ACSM) |
| 9 | Head unit |
| 10 | Base plate in the center console and snap-in adapter |
| 11 | Telephone antenna 1 |
| 12 | GPS antenna (connection to Combox only for vehicles without option 609) |
| 13 | Bluetooth antenna |
| 14 | Telephone antenna backup |
| 15 | Telephone antenna 2 (except E88 and E93) |
| 16 | Telephone antenna 2 (only for E88 and E93) |
| 17 | Combox |
| 18 | Microphone on steering column trim panel (only for E88 and E93) |
| 19 | Microphone in roof function center (except E88 and E93) |
| 20 | Emergency call button |
