Test Group 1BMXV05.4LEV
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2001 BMW Z8, 2001 BMW X5, 2001 BMW M5, 2001 BMW 750iL, and 2001 BMW 740iL. However, it is still accessible from the selected car via links, so may be relevant.

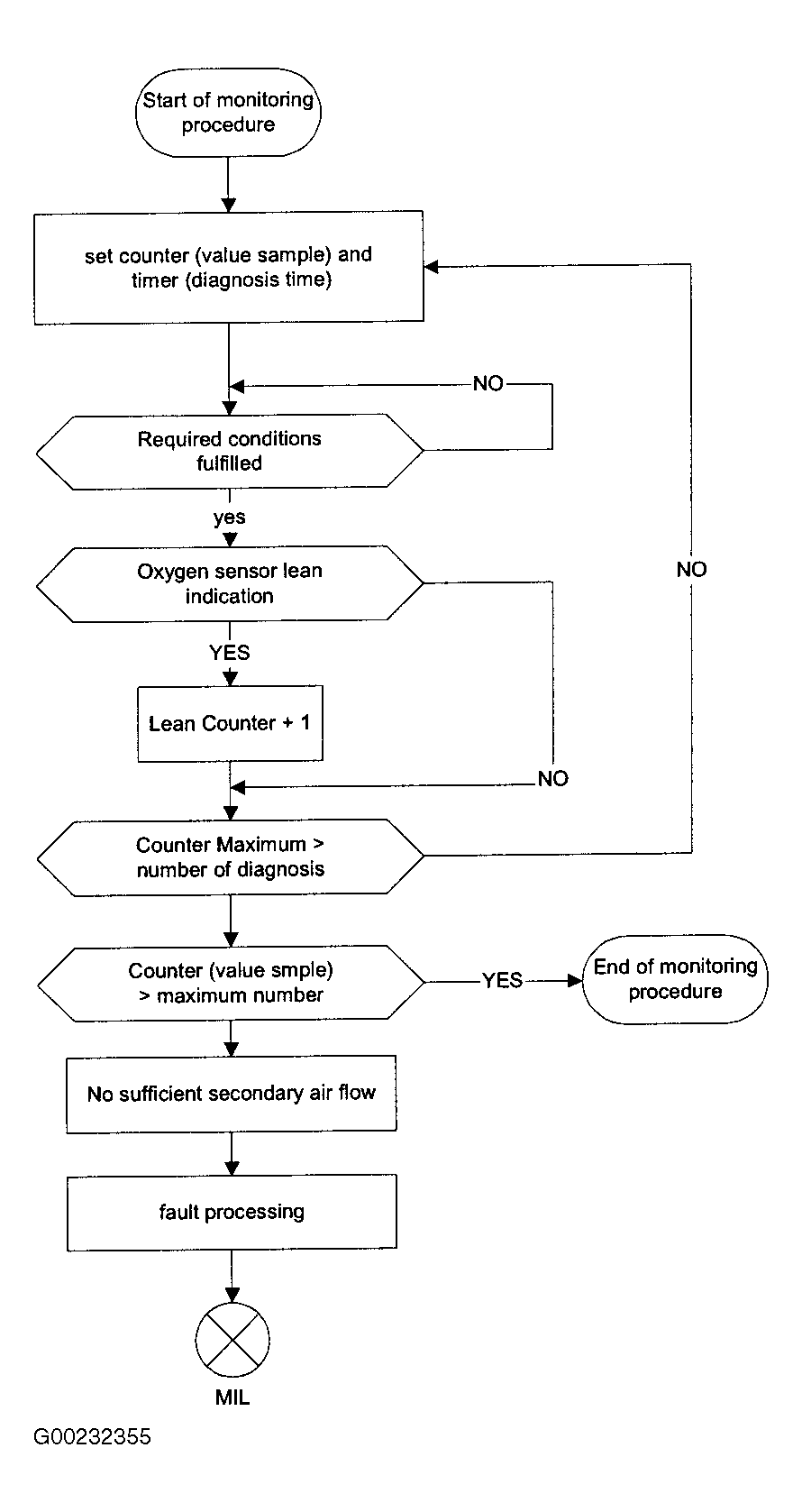

General Description - At cold start the secondary air pump and valve are switched on for their normal operating function. The secondary air delivered into the exhaust gas is causing a lean mixture indicated by the output voltage of the oxygen sensor. At any time the oxygen sensor indicates a lean mixture within the maximum number of diagnosis, a counter is incriminated by "one" up to a predetermined value. This fixed limit corresponds to the minimum amount of secondary air (low-flow-limit-check). See Fig 1.
