11 62 142 Removing and installing or replacing both exhaust manifolds on left (M62 to 9/98): Installation:: Installation:
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

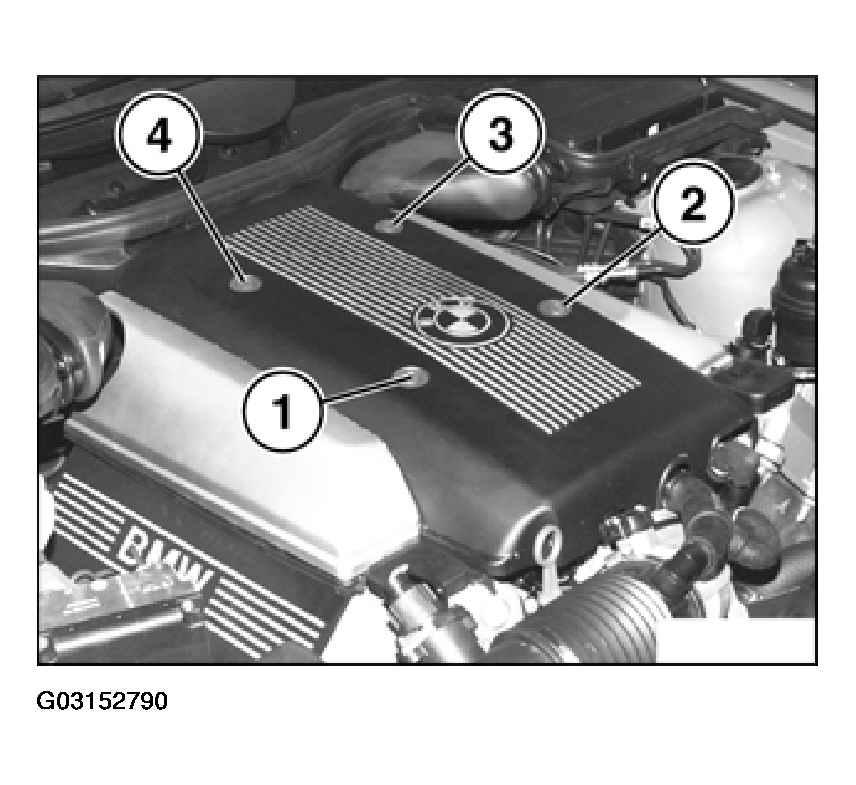

Position acoustic cover and press downwards until press-studs (1... 4) click into place.

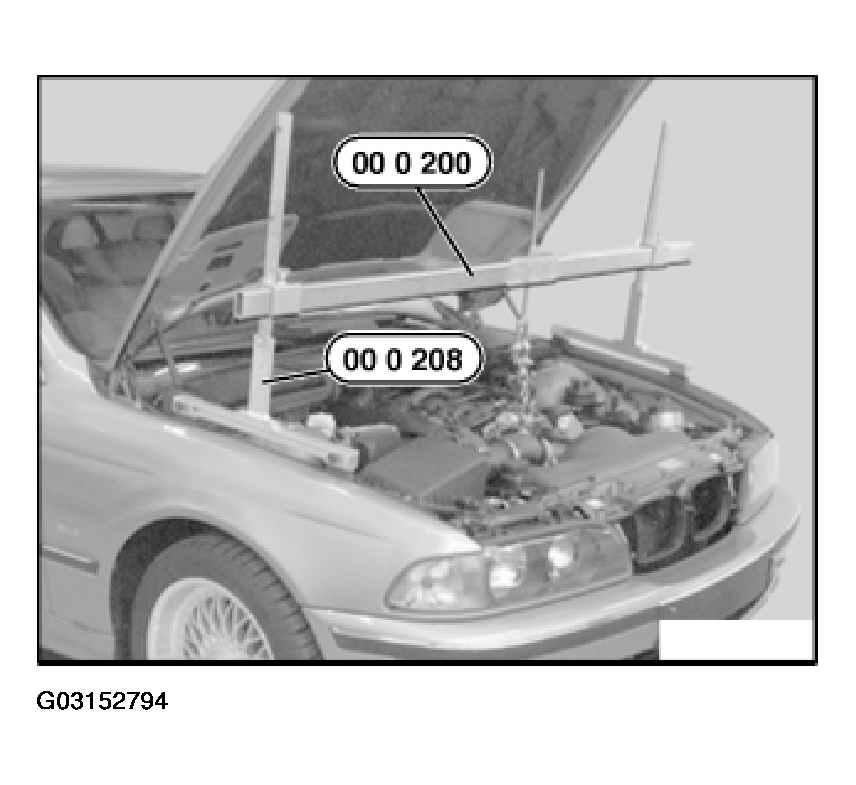

Fit special tool 00 0 200 to special tool 00 0 201 / 202 / 204 / 208 and attach.
NOTE:

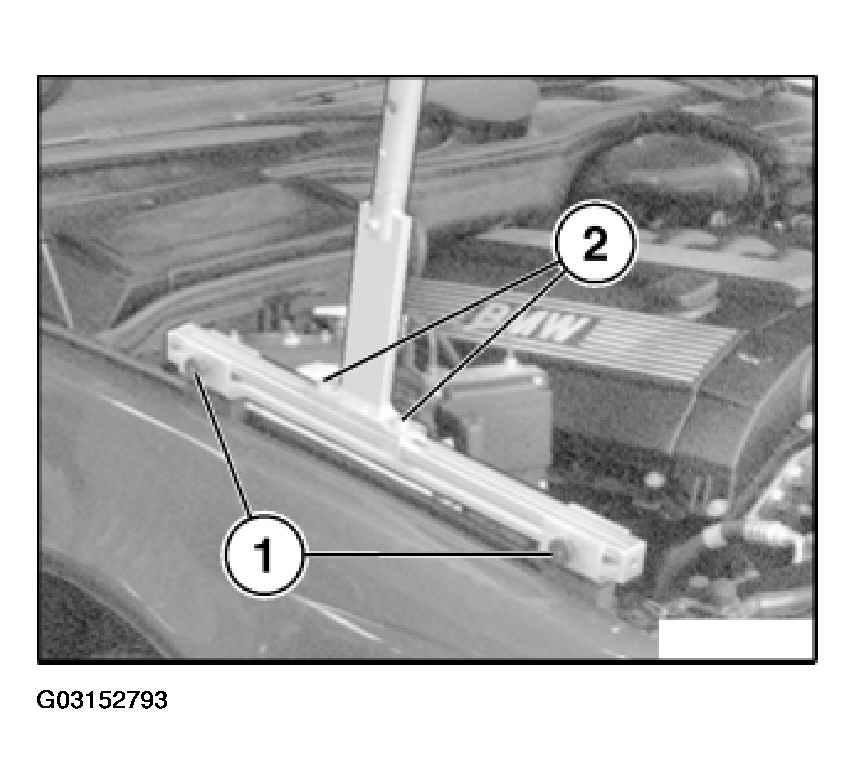

The supports (1) of special tool 00 0 208 must make contact with the screws on the side walls.
CAUTION:
Only attach engine to relevant suspension lugs.

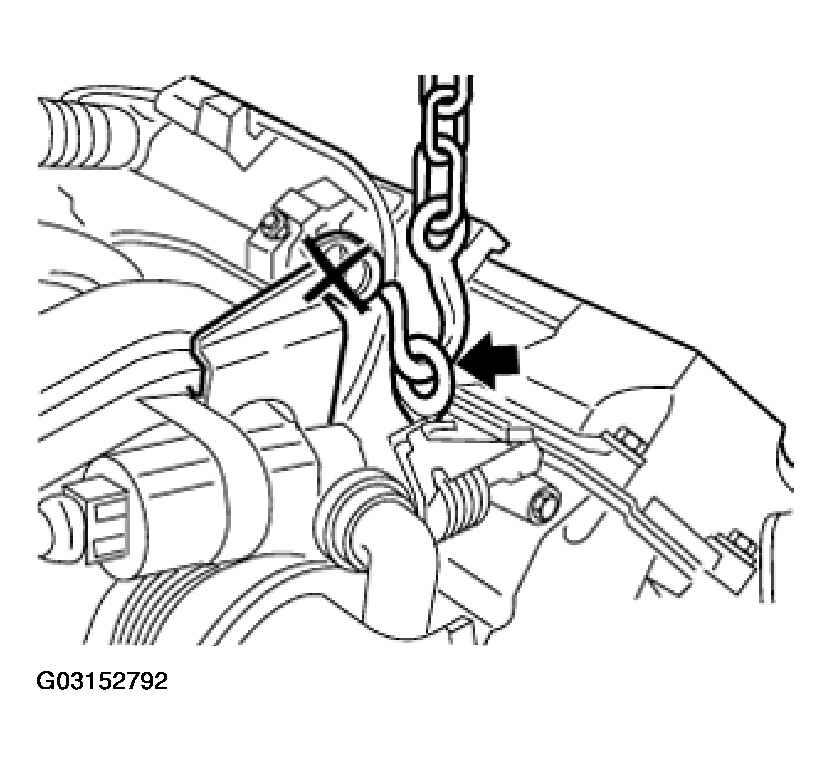

Attach special tool 00 0 200 to the front suspension lug.
Tighten the screws (1 and 2).

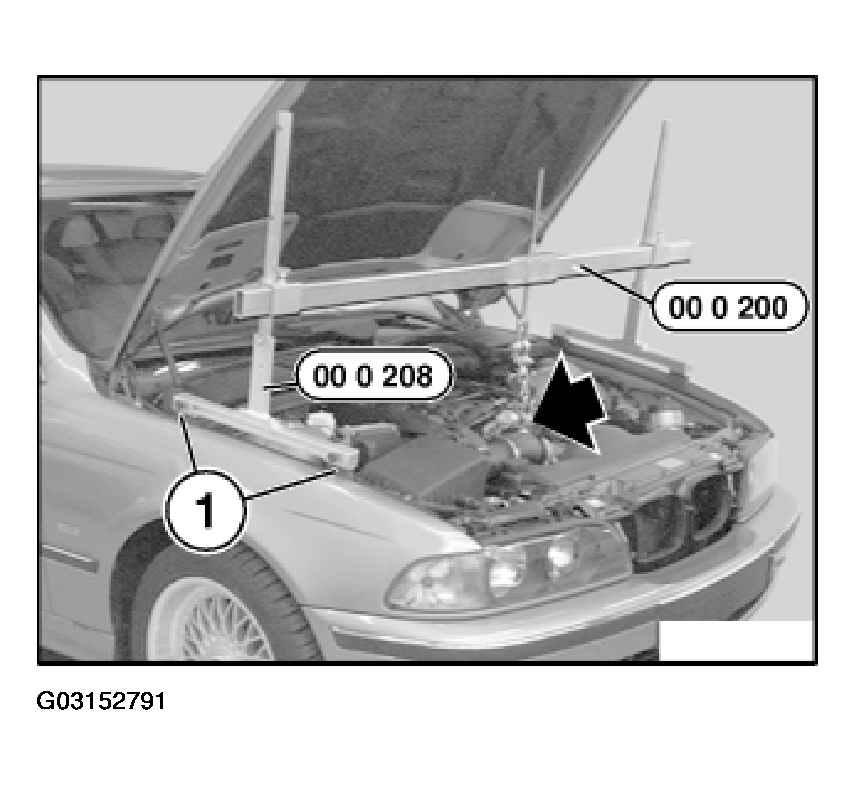

Raise engine approx. 6-8 mm with special tool 00 0 200 on front suspension lug.
NOTE:
With transmission removed, engine must also be raised on flywheel end an additional 10 mm approx.

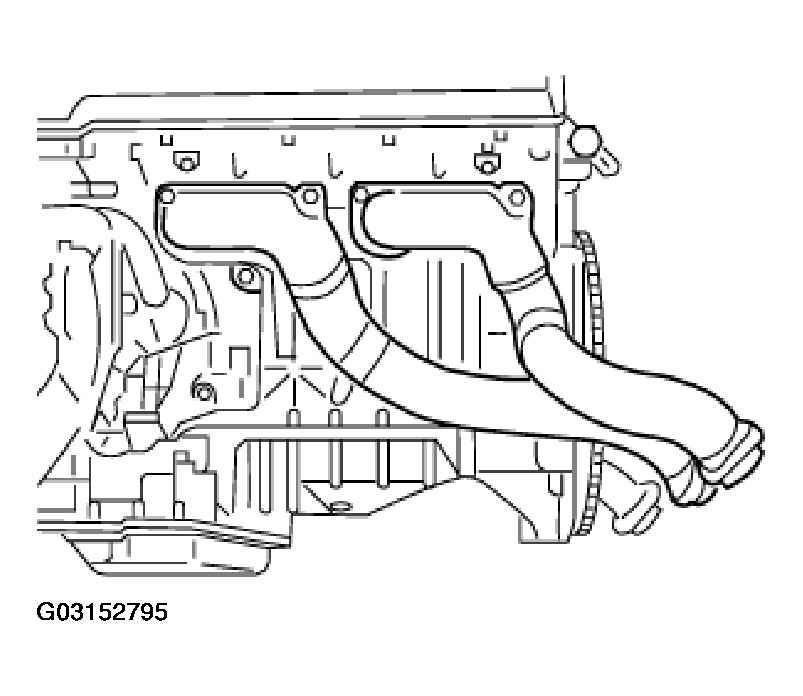

Unfasten screw connection on exhaust manifold.
NOTE:
First remove the front exhaust manifold, then the rear exhaust manifold (pull downwards to remove).

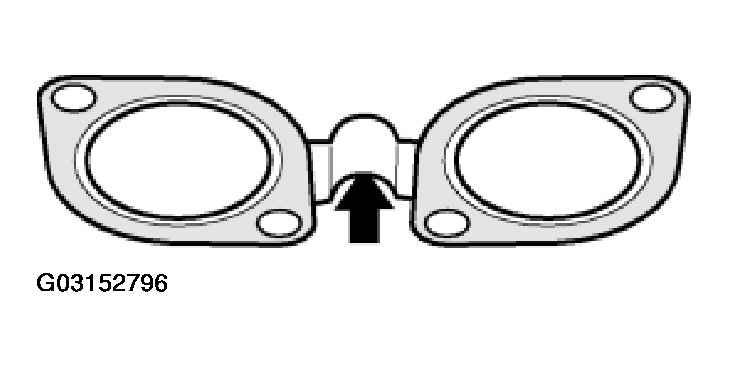

Replace seals.
Beads of seals face the exhaust manifold.
Coat thread with copper paste -CRC-.
Replace nuts.
Tightening torque, refer to 11 62 1AZ in ENGINE - TIGHTENING TORQUES - 540i .
