64 11 991 Removing and installing/replacing sensor for automatic recirculated air control
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove radiator cover. Refer to REMOVING RADIATOR COVER .

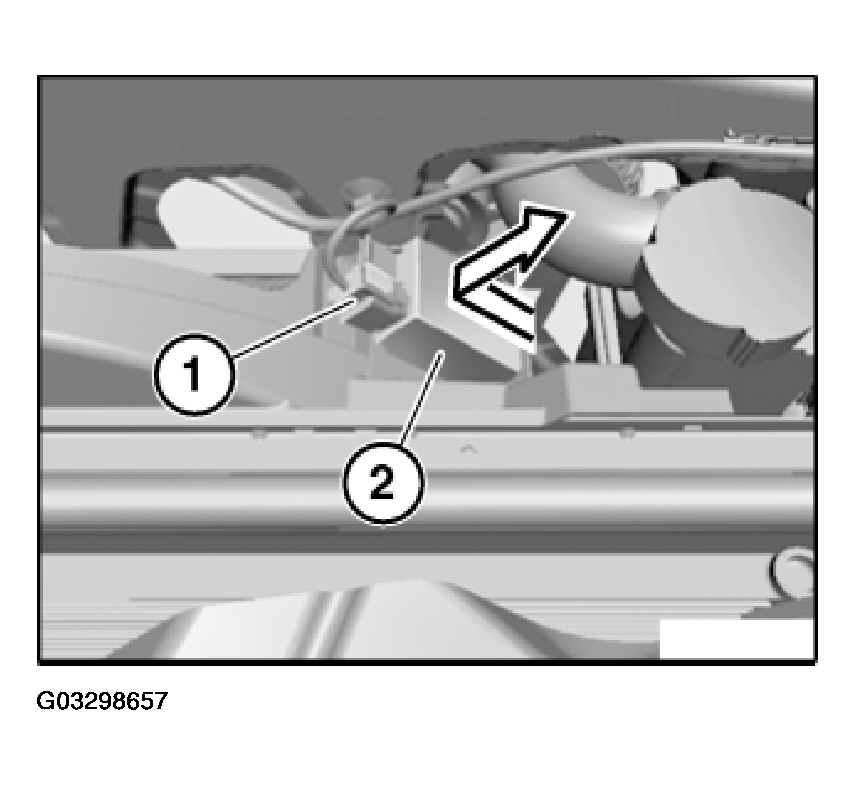

Unlock plug connection (1) and disconnect.
Feed out sensor for automatic recirculated air control (2) in direction of arrow and remove.
Installation:
Make sure sensor for automatic recirculated air control (2) is correctly seated.
