64 11 829 Removing and installing/replacing servodrive for ventilation flaps (automatic A/C)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right glovebox with housing. Refer to 51 16 367 REMOVING AND INSTALLING RIGHT GLOVE BOX WITH HOUSING (WITH ACTIVE KNEE PROTECTION) .

Press lock (1) and pull out servodrive for ventilation flaps (2) in direction of arrow.

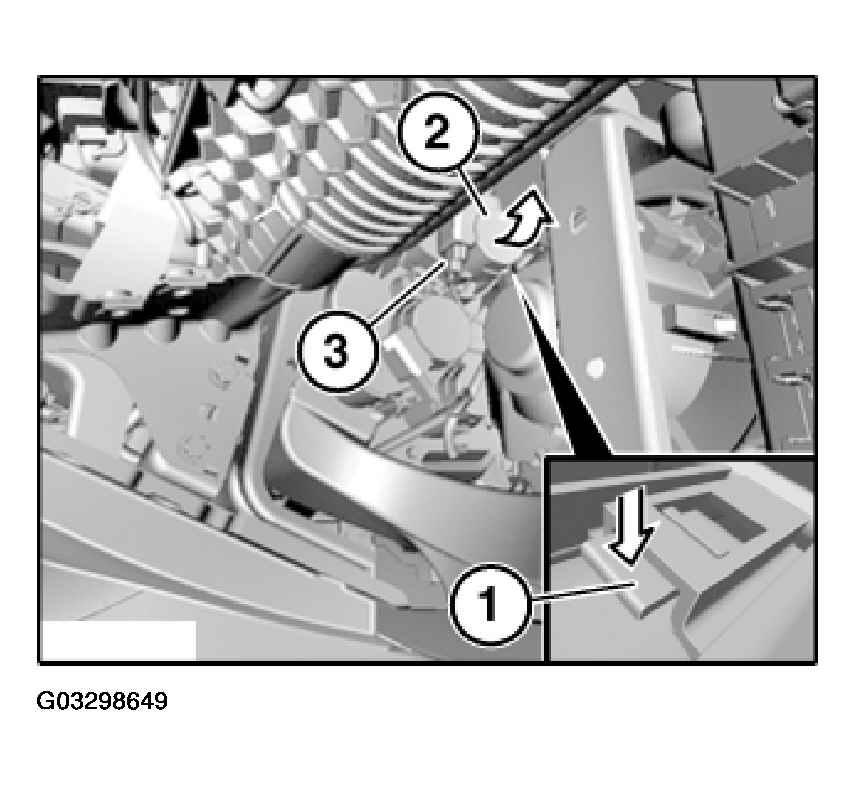

Fig 1: Removing Servodrive For Ventilation Flaps

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (3) and disconnect.

Installation:

Follow repair instruction "Installing servodrive". Refer to 64 11... INSTALLING SERVODRIVE .
