64 11 806 Removing and installing/replacing servodrive for fresh-/recirculated-air flap
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim for instrument panel, bottom right. Refer to 51 45 181 REMOVING AND INSTALLING/REPLACING TRIM FOR INSTRUMENT PANEL, BOTTOM RIGHT .

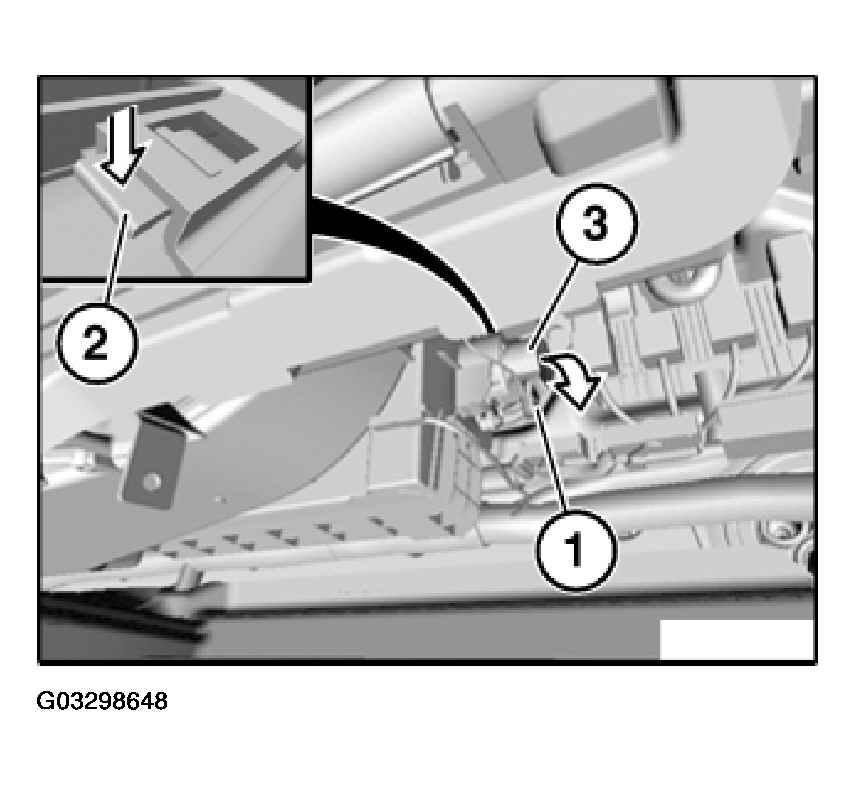

Unlock plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for fresh-/recirculated-air flap (3) in direction of arrow.
Installation:
Follow repair instruction "Installing servodrive". Refer to 64 11... INSTALLING SERVODRIVE .
