64 53 551 Removing and installing or replacing condenser for A / C system
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Avoid contact with refrigerant and refrigerant oil.
Follow safety instructions for handling refrigerant R 134a. Refer to 64 50 ... SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT R 134a .
Follow safety instructions for handling refrigerant oil. Refer to 64 50 ... SAFETY PRECAUTIONS WHEN HANDLING REFRIGERANT OIL (FOR REFRIGERANT R 134a) .
Follow safety instructions for handling refrigerant R 134a. Refer to 64 50 ... SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT R 134a .
Follow safety instructions for handling refrigerant oil. Refer to 64 50 ... SAFETY PRECAUTIONS WHEN HANDLING REFRIGERANT OIL (FOR REFRIGERANT R 134a) .
NOTE:
The time value given for this work operation does not include drawing off, evacuating and filling the A/C system!
- Drain off air conditioner, refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134a)
IMPORTANT:
Risk of damage!
Restart engine only when A/C system has been correctly filled.
Restart engine only when A/C system has been correctly filled.
NOTE:
If A/C system is opened for more than 24 hours: Replacing drier insert for A/C system, refer to 64 53 510 REMOVING AND INSTALLING / REPLACING DRIER FLASK FOR AIR CONDITIONER .
Necessary preliminary tasks:
- Remove radiator, refer to 17 11 000 REMOVING AND INSTALLING RADIATOR (M54)
After installation:
- Fill and vent cooling system and check for leaks, refer to 17 00 009 CHECKING COOLING SYSTEM FOR LEAKS (M54)

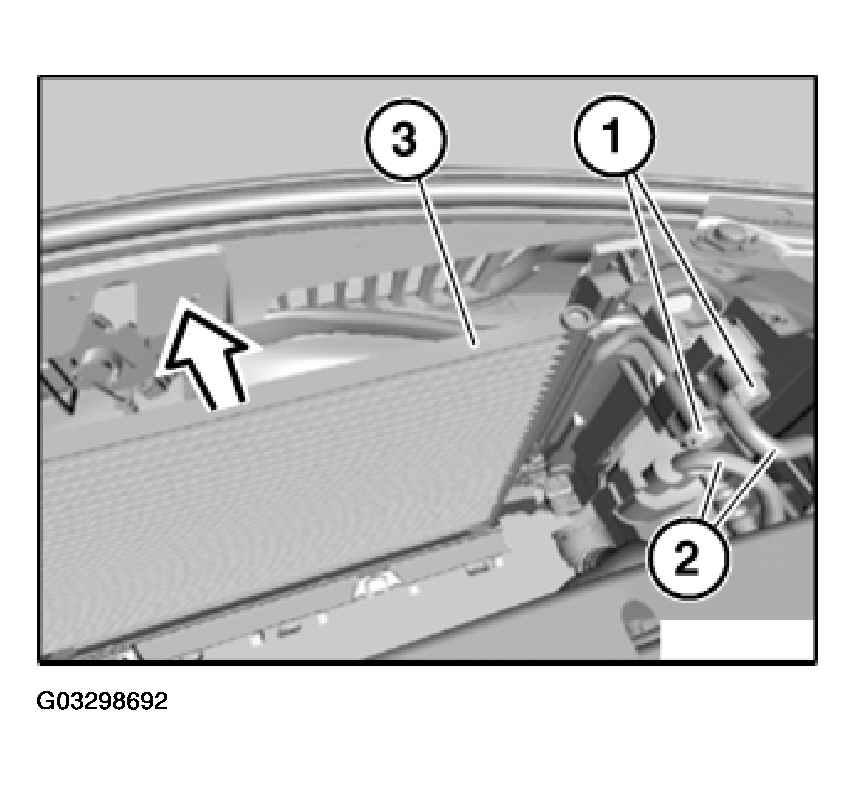

Release screws (1).
Installation:
Tightening torque 64 53 6AZ. Refer to HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .
Disconnect refrigerant lines (2).
Installation:
Replace sealing rings.
Pull out condenser for A/C system (3) in direction of arrow.
Installation:
Make sure A/C condenser (3) is correctly seated.

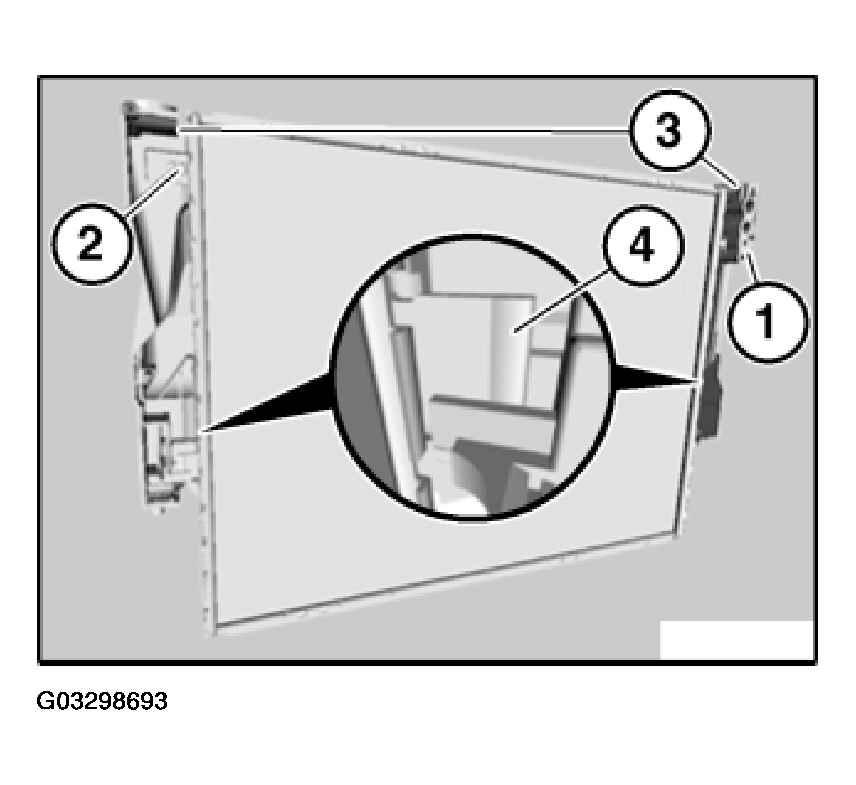

Release screw (1).
Release expansion rivet (2).
Take off holder (3).
Installation:
Make sure guides (4) are correctly seated in holders (3).
