64 52 523 Replacing compressor for air conditioner

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for compressor replacement without fail. Refer to 64 52 ... INSTRUCTIONS FOR COMPRESSOR REPLACEMENT .

Necessary preliminary tasks:

Draw off refrigerant from A/C system. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134a) .
Remove fluid tank for windshield washer system. Refer to 61 71 061 REPLACING FLUID RESERVOIR FOR WINDSHIELD WASHER SYSTEM .
Remove front underbody protection. Refer to 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .
Remove A/C compressor drive belt. Refer to 11 28 050 REPLACING A/C COMPRESSOR DRIVE BELT (M52 / S52 / M52TU / M54 / M56) .

Disconnect plug connection (1).

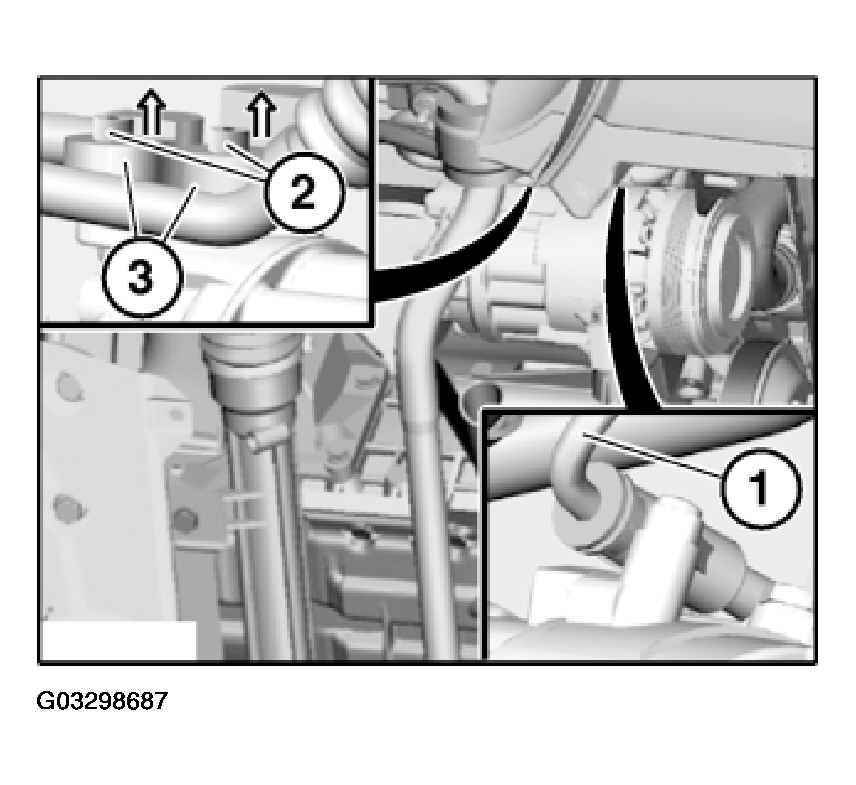

Fig 1: Removing Refrigerant Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Detach refrigerant lines (3) in direction of arrow.

Installation:

Replace sealing rings.

Tightening torque = 20 Nm.

NOTE: Secure A/C compressor (2) against falling out.

Release screw (1) and remove A/C compressor (2) downwards.

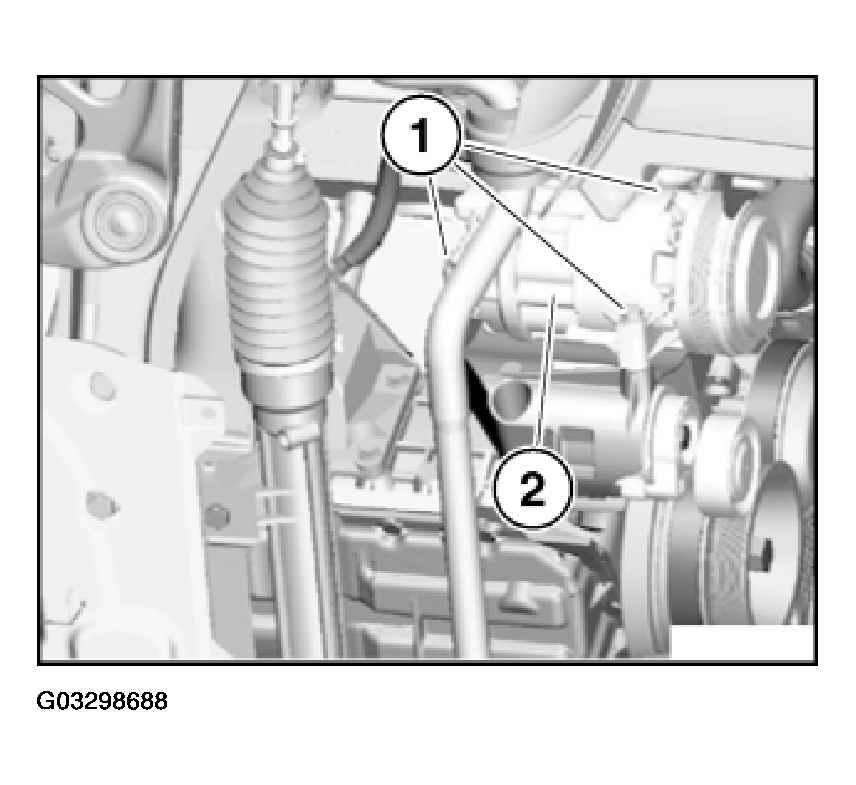

Fig 2: Removing A/C Compressor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque = 21.4 Nm.
