64 51 522 Removing and installing or replacing expansion valve

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Draw off refrigerant from A/C system. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134a) .
Follow instructions on replacing dryer bottle. Refer to 64 53 ... NOTES ON REPLACING DRIER BOTTLE OR DRIER INSERT .

Release screw (1).

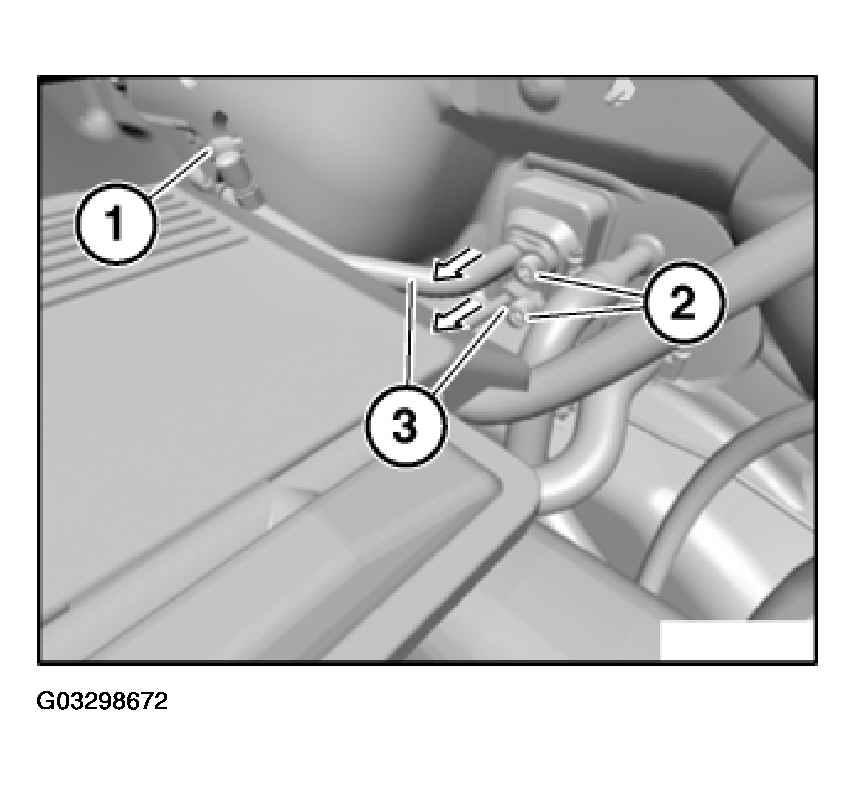

Fig 1: Removing Refrigerant Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 64 53 5AZ. Refer to HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .

Release screws (2).

Detach refrigerant lines (3) in direction of arrow and press slightly to one side.

Installation:

Replace sealing rings.

Tightening torque 64 53 2AZ. Refer to HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .

Release screw (1).

Detach adapter plate (2) in direction of arrow.

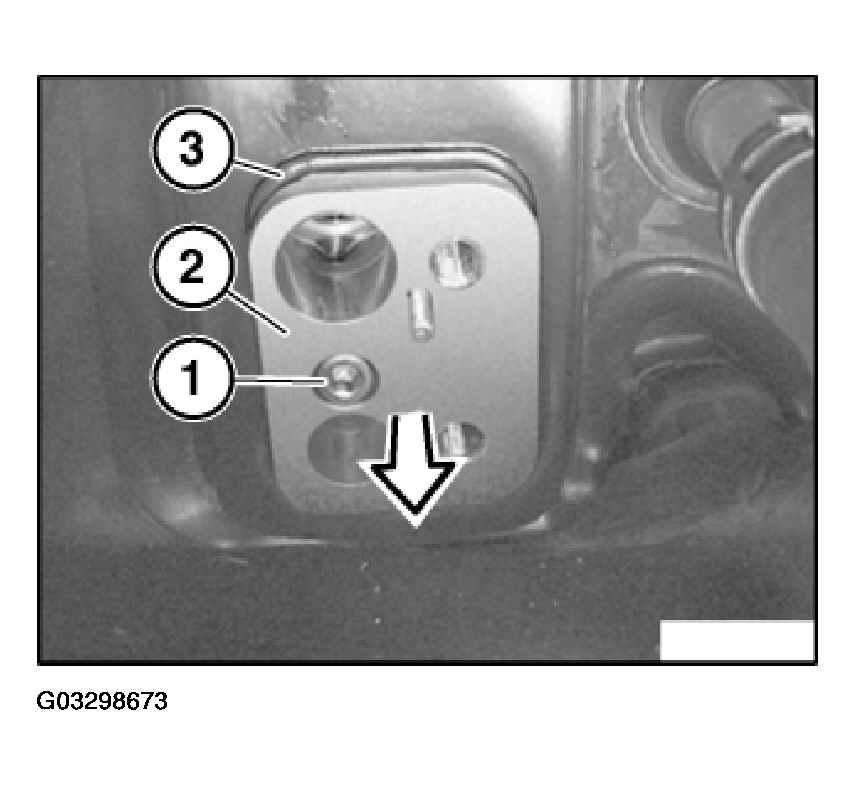

Fig 2: Removing Adapter Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 64 53 3AZ. Refer to HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .

Make sure bulkhead grommet (3) is correctly seated in all-round groove of adapter plate (2).

Release screws (1).

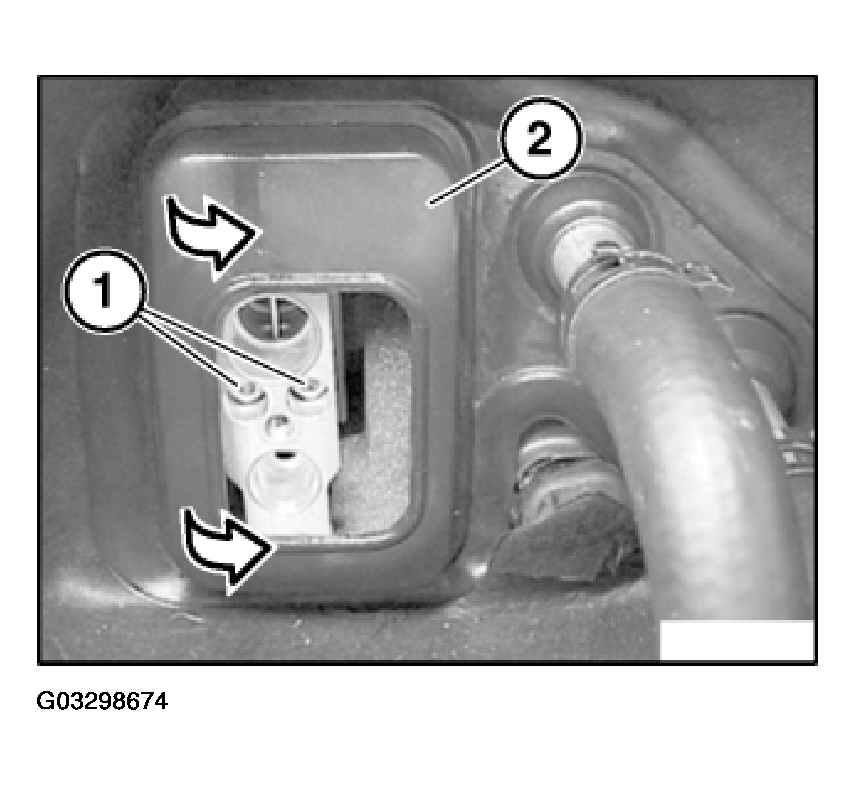

Fig 3: Removing Bulkhead Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 64 53 9AZ. Refer to HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .

Carefully detach bulkhead grommet (2) from bulkhead and fold down in direction of arrow.

Detach expansion valve (1) in direction of arrow.

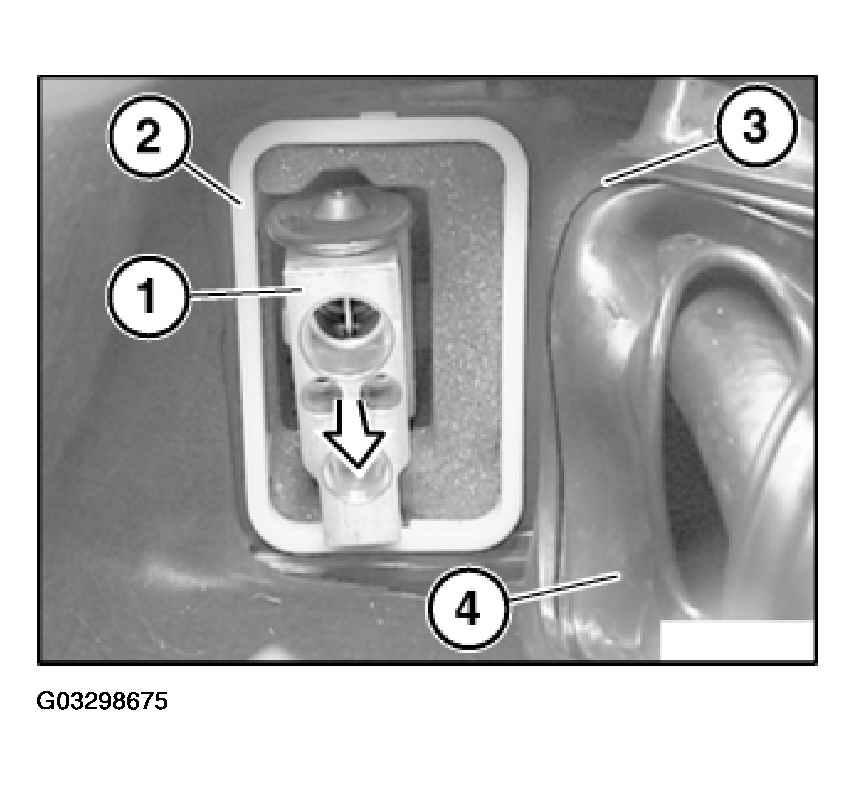

Fig 4: Removing Expansion Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings.

Unclip frame (2) from bulkhead and insert in groove (3) of bulkhead grommet (4).

Make sure bulkhead grommet (4) is correctly seated.
