54 34... Topping up/extracting fluid, checking fluid level

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Follow repair instruction s for hydraulic system. See 54 34... Repair Instructions For Hydraulic System Of Convertible Top And Convertible Top Compartment Lid .
Remove convertible top . See 54 34 101 Removing And Installing Complete Convertible Top .
Convertible top placed on special tool .
Remove acoustic insulation of hydraulic unit.

Checking fluid level:

Close convertible top
Position hydraulic unit vertically.
Fluid level must be within the markings.
1. Maximum
2. Minimum

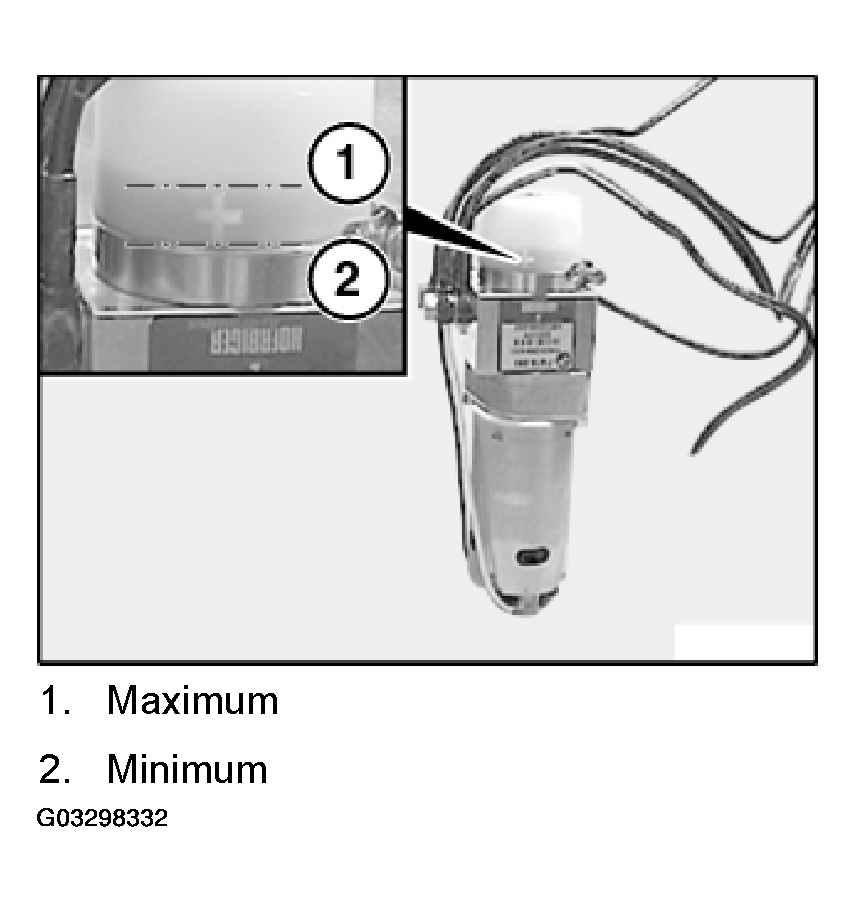

Fig 1: Checking Fluid Level
Courtesy of BMW OF NORTH AMERICA, INC.

Topping up fluid:

Open oil filler plug.
Tightening torque, see 54 34 5AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .
Hold hydraulic unit vertically and pour in required amount of fluid from a fluid bottle.
Check fluid level from time to time.

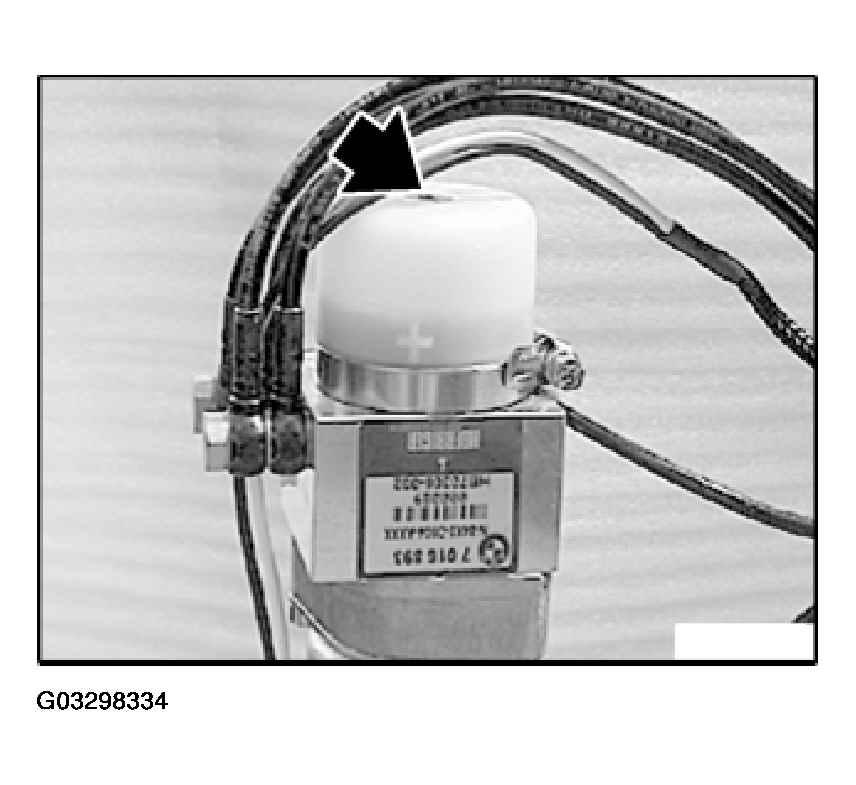

Fig 2: Locating Oil Filler Plug (Topping Up Fluid)
Courtesy of BMW OF NORTH AMERICA, INC.

Extract fluid:

Open oil filler plug.
Tightening torque, see 54 34 5AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .
Hold hydraulic unit on its head over a tray and allow oil to flow out.

Fig 3: Locating Oil Filler Plug (Extract Fluid)
Courtesy of BMW OF NORTH AMERICA, INC.
