54 31 145 Replacing cover

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove convertible top . See 54 34 101 Removing And Installing Complete Convertible Top .

NOTE: This operation can be carried out from the right or left side.

Release screws (1) of front strap on convertible top strip.

Feed front strap (2) and cover (3) out of convertible top strip.

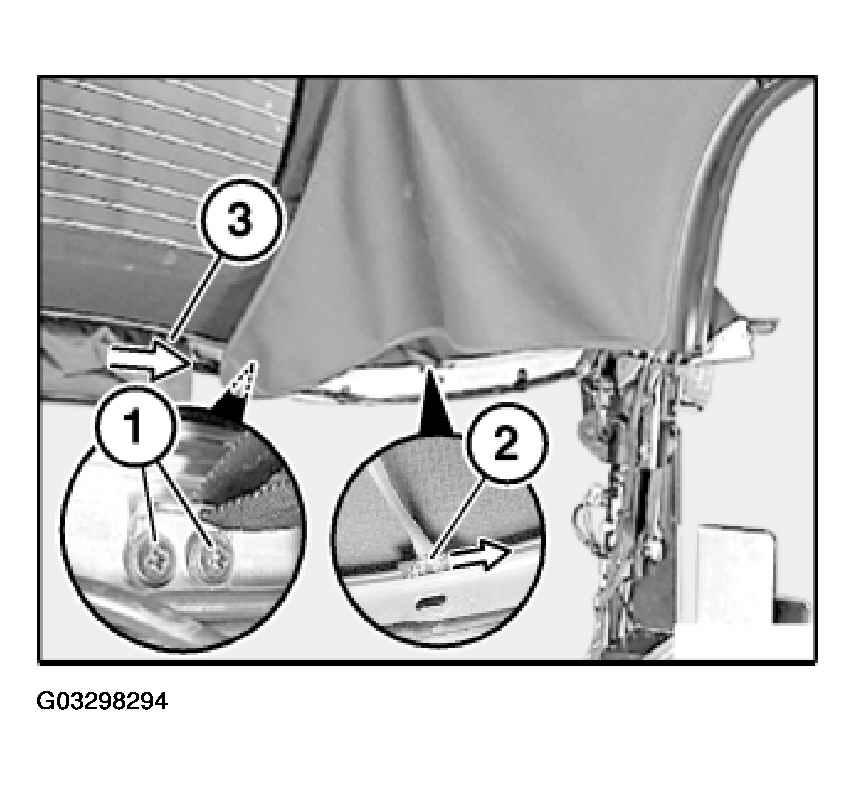

Fig 1: Feeding Front Strap And Cover Out Of Convertible Top Strip

Courtesy of BMW OF NORTH AMERICA, INC.
