54 34 210 Removing and installing/replacing tension cable
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove convertible top fabric at front up to main support (without last bow) (without convertible top removal). See 54 34 120 Replacing Convertible Top Fabric .

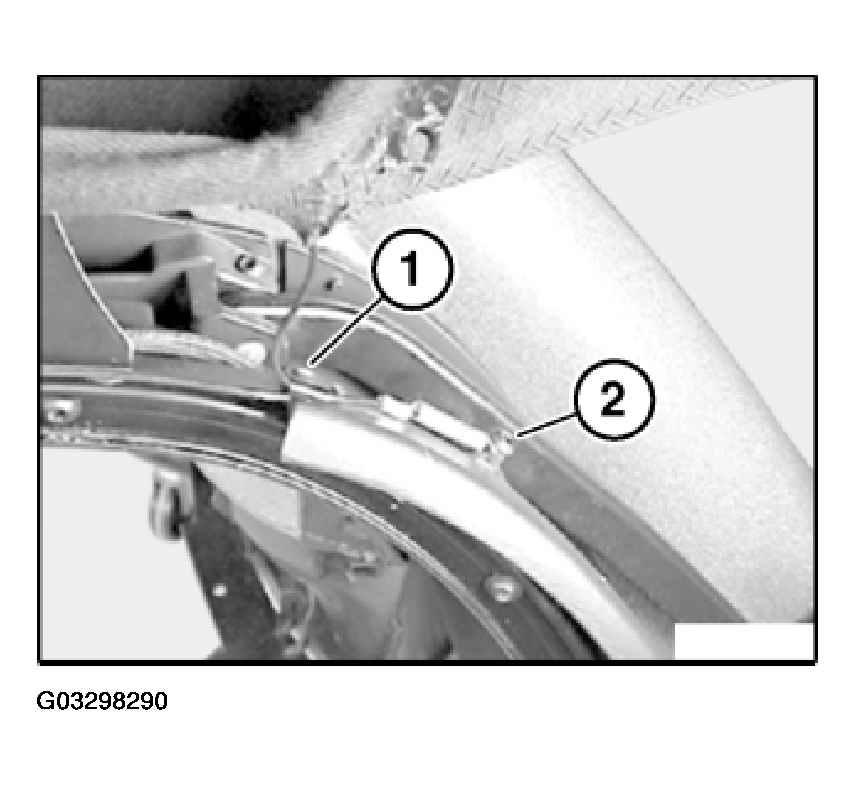

Drill out rivet joint (1) from rear tension cable bearing on left/right.
Release screw (2).
Remove tension cable from cable.
Feed tension cable out of fabric towards front.
Installation:
Use a pull-in aid (e.g. welding wire).
Replace shims.
