54 31... Overview of mechanical convertible top catch

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

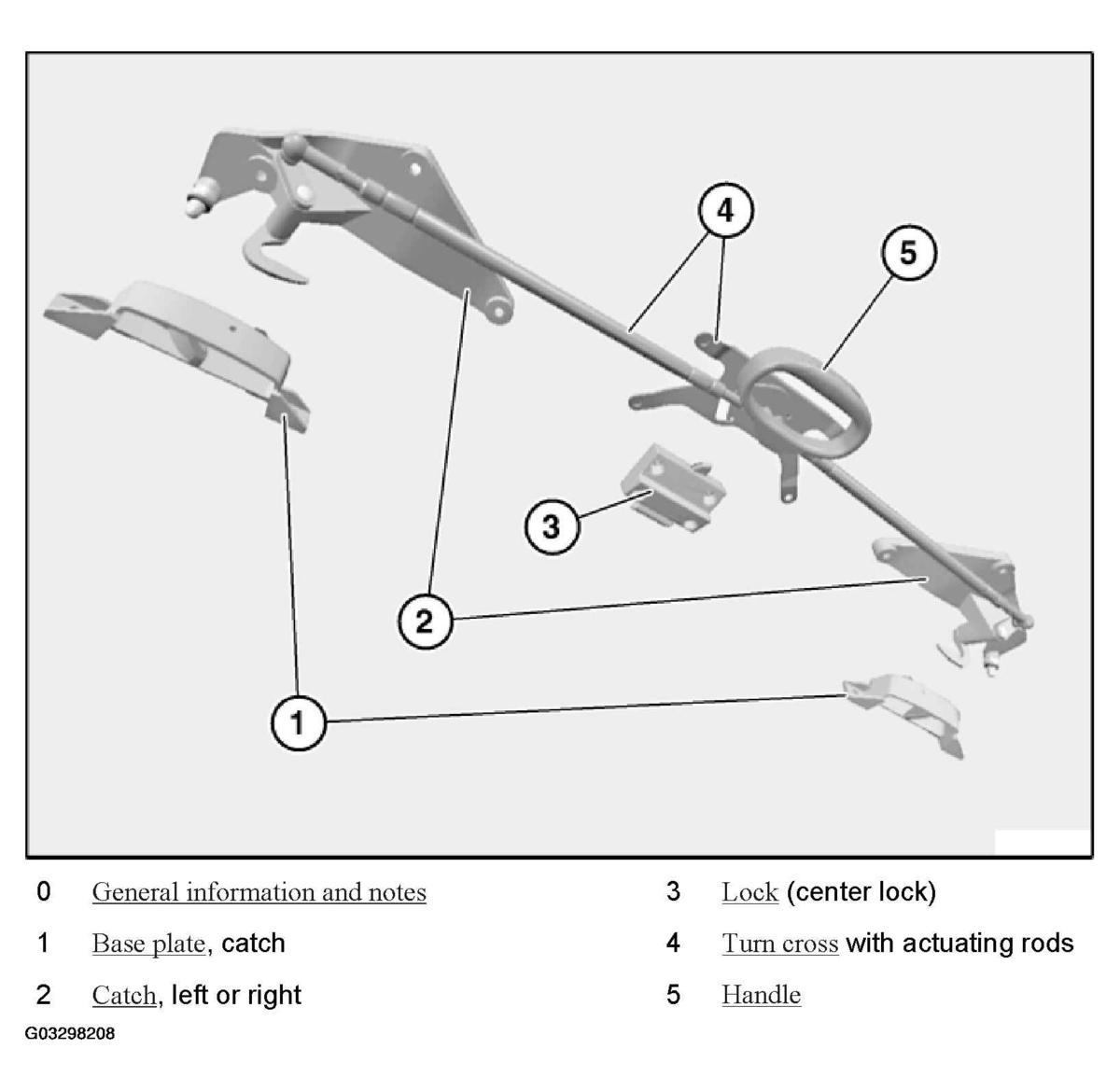

Fig 1: Overview Of Mechanical Convertible Top Catch
G03298208Courtesy of BMW OF NORTH AMERICA, INC.
