54 31 130 Removing and installing/replacing one funnel

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove convertible top . See 54 34 101 Removing And Installing Complete Convertible Top .
Remove mounting for convertible top compartment middle. See 54 31 180 Removing And Installing/Replacing A Mounting For Convertible Top Compartment Floor .
Remove rear trim from rollover protection system. See 51 43... REMOVING AND INSTALLING/REPLACING TRIM COVER FOR ROLLOVER PROTECTION .
Remove wheel arch splash guard . See 51 71 038 REMOVING AND INSTALLING/REPLACING FRONT SPLASH GUARD .

Remove expansion rivets (1).

Remove clamp (2).

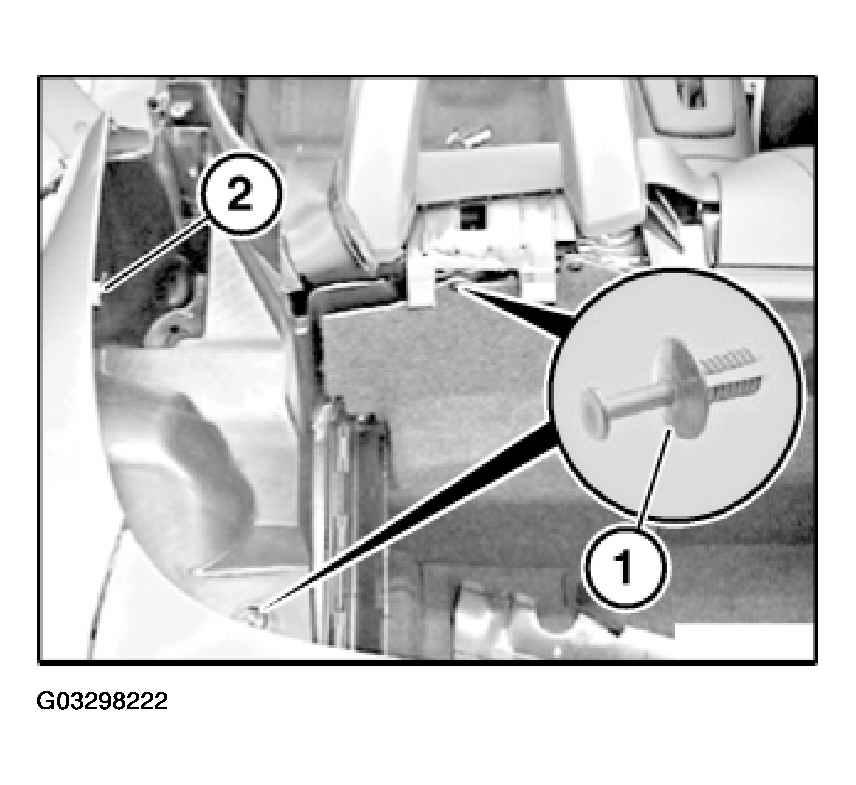

Fig 1: Removing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Raise cover (2) slightly and feed out funnel (1).

Lever out funnel (1) towards top.

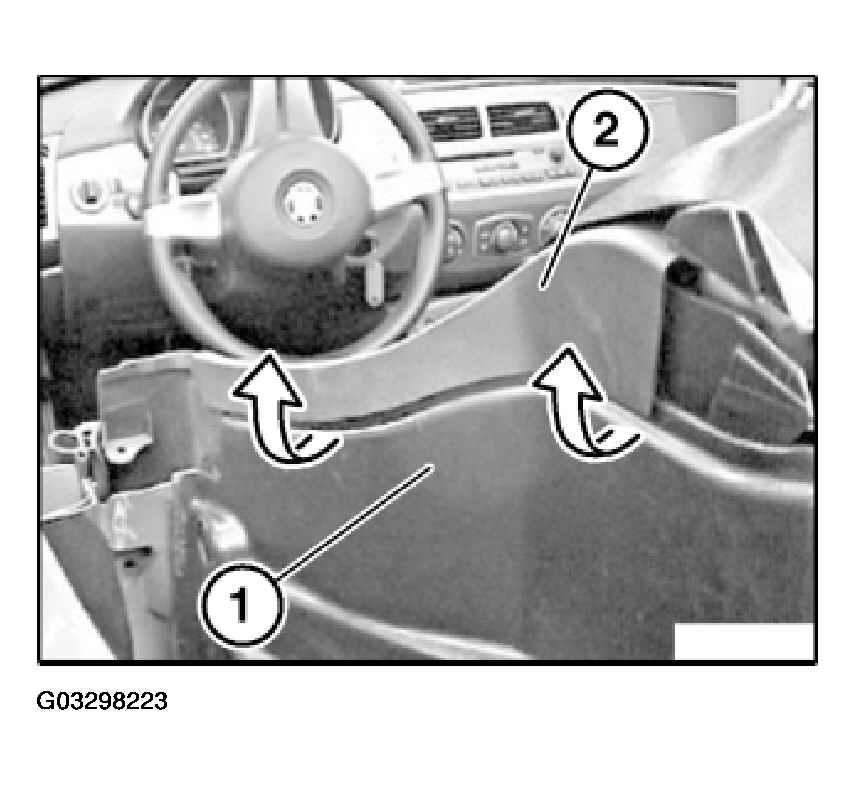

Fig 2: Removing Funnel Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

Expose water drain hose at bottom of wheel arch (remove underbody protection) and feed out towards top.

Installation:

Install water drain hose with aid of a wire and install feed at bottom into sheet metal. Ensure correct seating.

Seal water drain hose with extrudable seam seal or underbody protection at bottom.

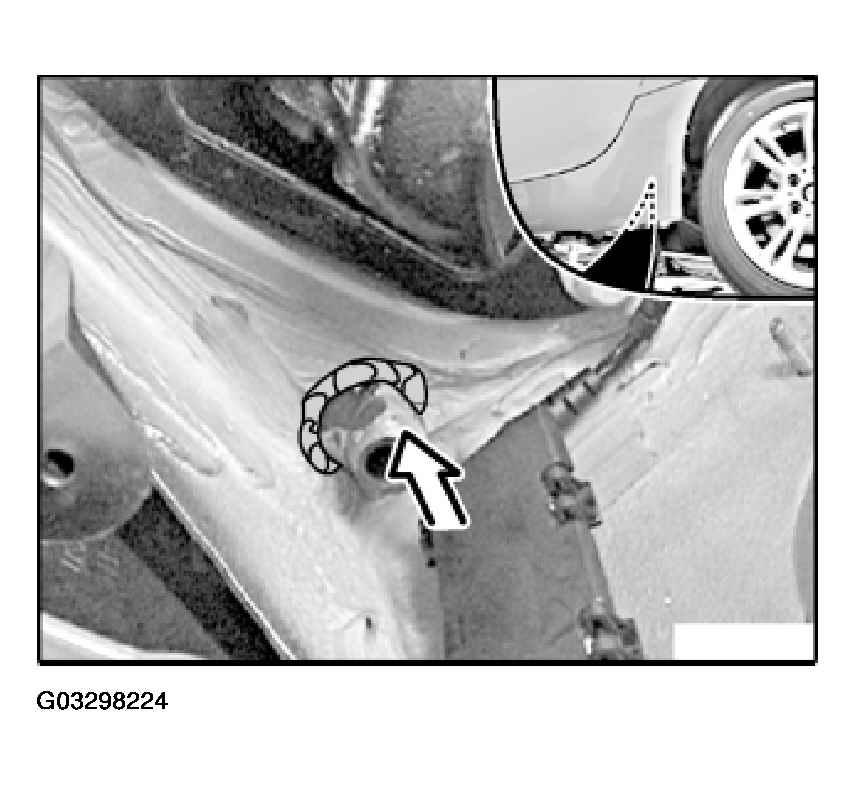

Fig 3: Locating Water Drain Hose
