51 24 300 Removing and installing or replacing left or right gas strut for trunk lid
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Open trunk lid.
WARNING:
Support rear lid in fully opened position with suitable apparatus. Risk of injury.
Make a written record of the alignment of the gas pressure spring(s) before removing.

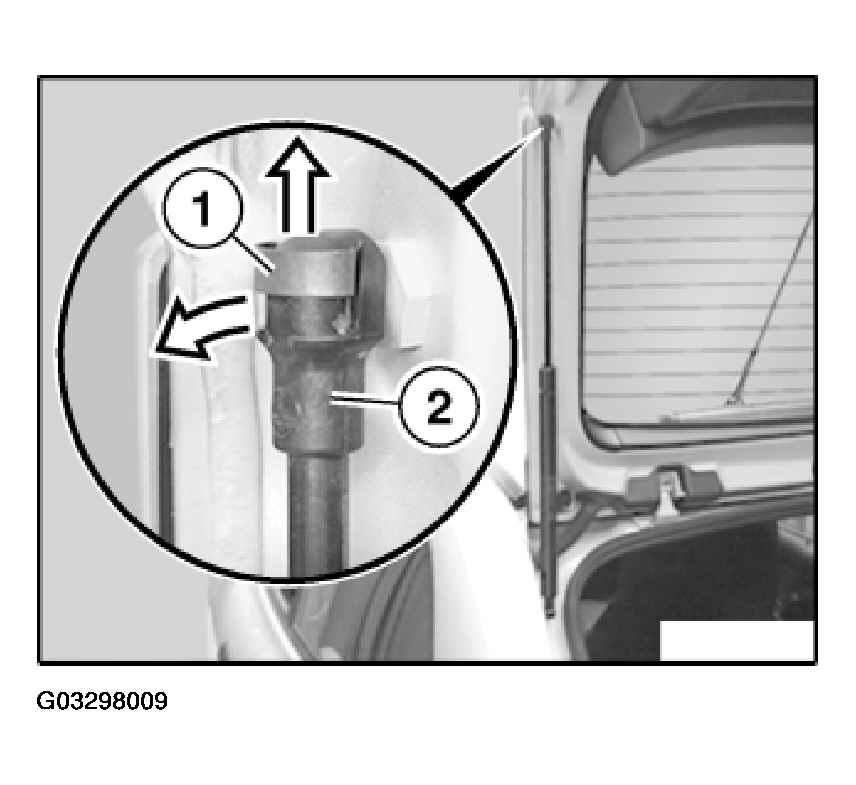

Slide stop spring (1) to end of gas pressure spring (2) and lever out gas pressure spring. Repeat the procedure at the other end of the gas pressure spring (2) and remove.
