51 13 425 Removing and installing/replacing trim on left or right rear light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Clean rear light.

Removal:

Removal of the trim on the rear light is described separately from installation.

NOTE: Do not damage positioning pins (2).

Detach trim "french fry" (1) on rear light with special tool 00 9 317 from rear light (3) and remove in direction of arrow.

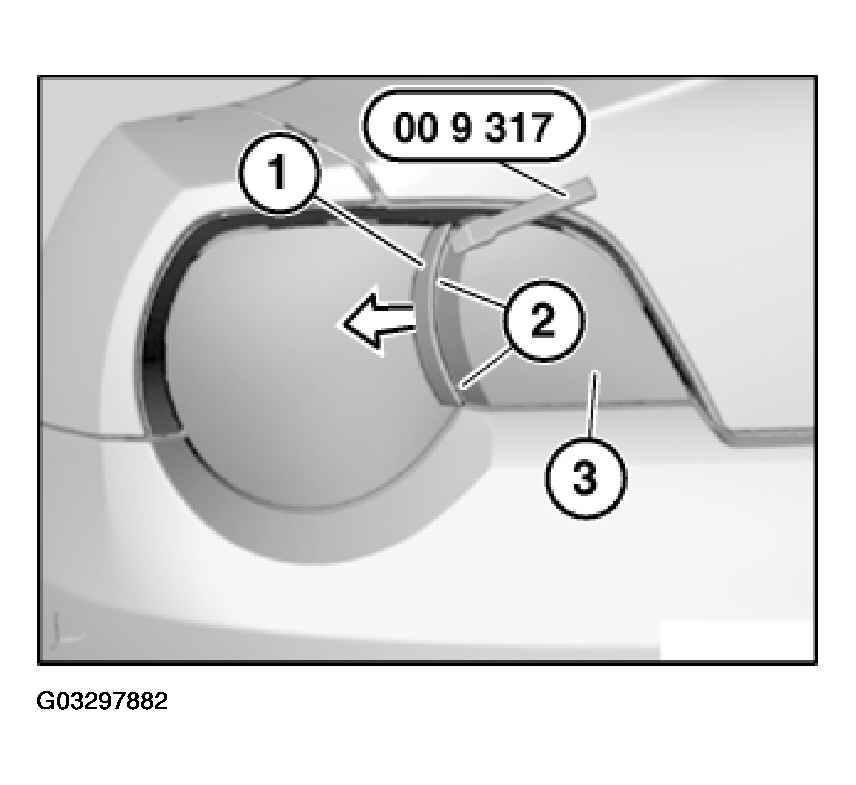

Fig 1: Detaching Trim On Rear Light With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Do not under any circumstances treat adhesive residue with scratching, grinding materials or any materials that may dissolve the paint or plastic.
Remove adhesive residue completely with spirit and larger residues with adhesive remover.

Installation

Installation of the trim on the rear light is described separately from removal.

NOTE: The temperature of rear light, trim on rear light and doublesided adhesive tape must be at least 18°C.
Clean bonding surfaces with spirit and leave to dry (air drying time at least 1 minute).
After this, do not touch bonding surfaces any more.

Stick double-sided adhesive tape on trim of rear light (1).

Installation:

Feed positioning pins (2) into associated mountings of rear light.

Fit trim (1) on rear light and press down evenly.

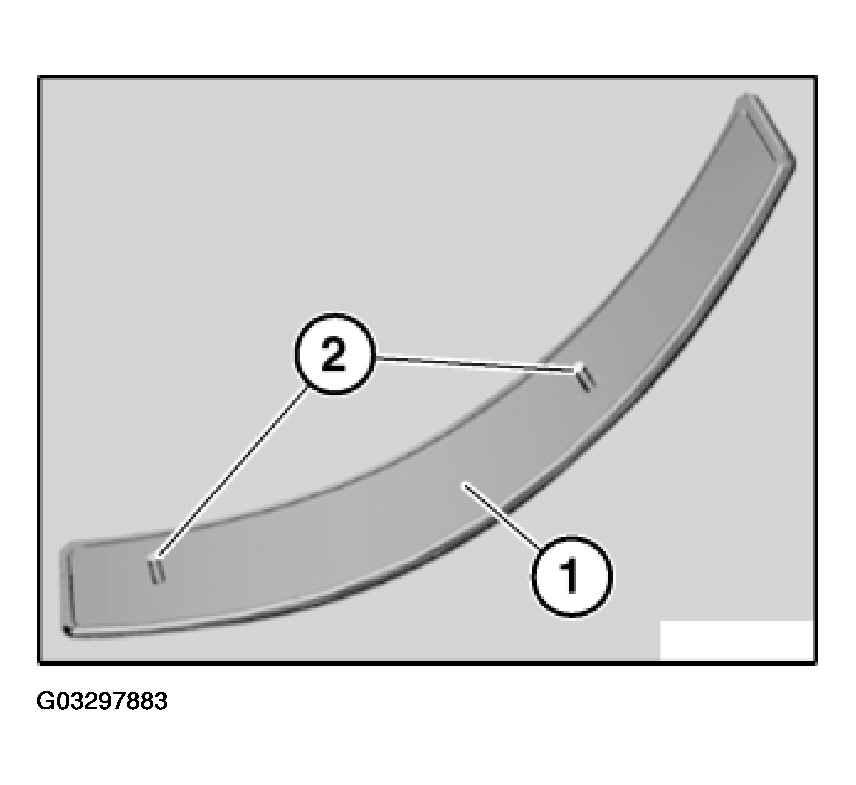

Fig 2: Locating Pins Into Associated Mountings Of Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To guarantee a permanent bond:

Once it has been pressed down, double-sided adhesive tape must not be reused after it is detached again. If necessary, replace double-sided adhesive tape.
Only use washing installations after a period of 24 hours has passed.
